MusicBee Clouseau

Documentation

Clouseau is a comprehensive diagnostic and introspection tool for MusicBee plugin developers. Beyond event logging, it provides deep reflection capabilities for exploring assemblies, invoking methods, and inspecting UI internals.

Overview

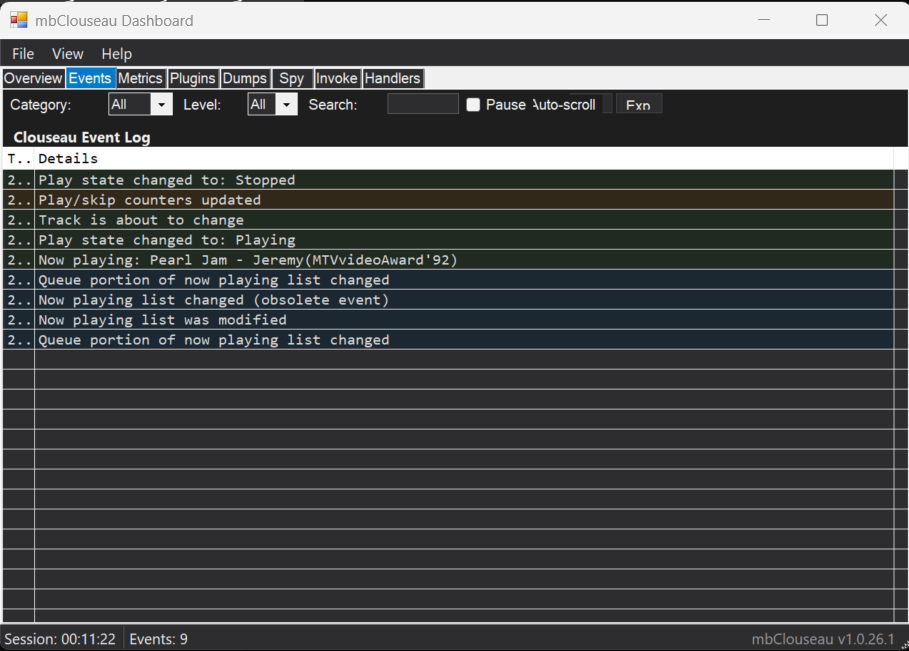

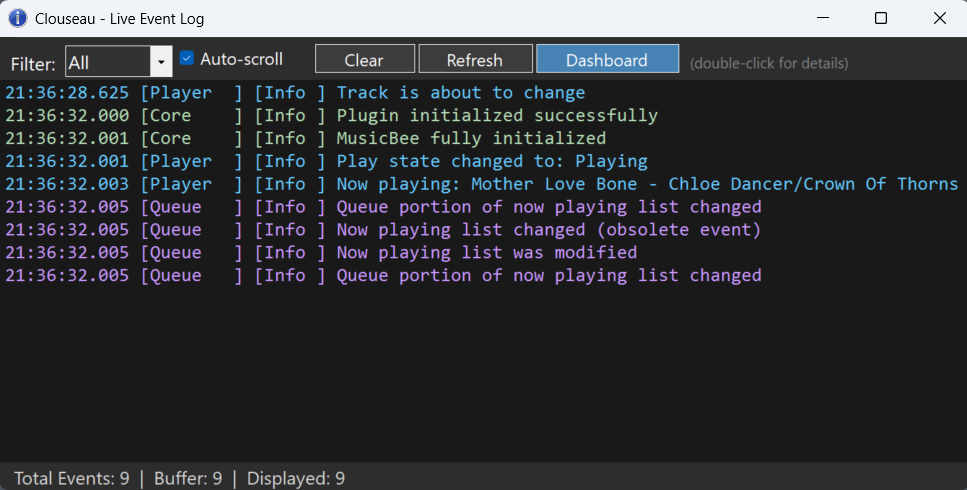

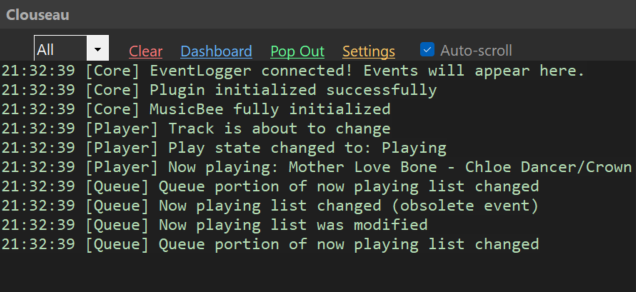

• Event Logging: Subscribe to all 40 MusicBee notification types with rich context (30+ fields per event)
• API Interception: Track timing and statistics for 60+ MusicBee API calls with slow call detection

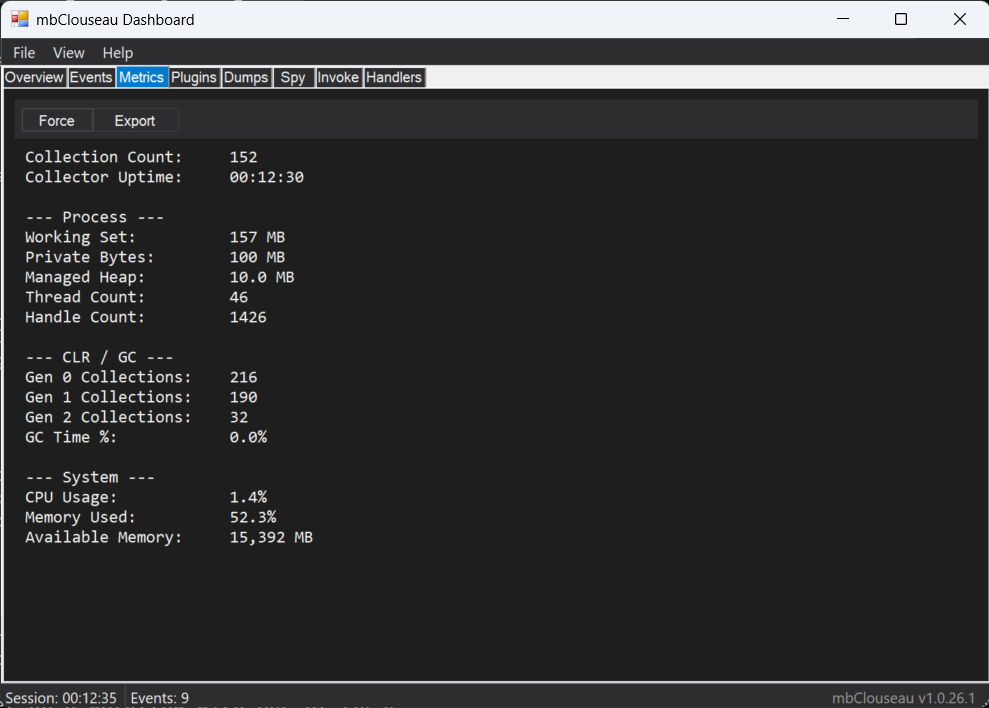

• System Metrics: Monitor CPU, memory, GC pressure, and handle leaks in real-time
• Leak Detection: Track GDI, USER, and Kernel handle trends to identify resource leaks before they crash MusicBee
• Plugin Discovery: Scan and inspect all installed MusicBee plugins
• Assembly Browser: Explore all loaded .NET assemblies, namespaces, and types

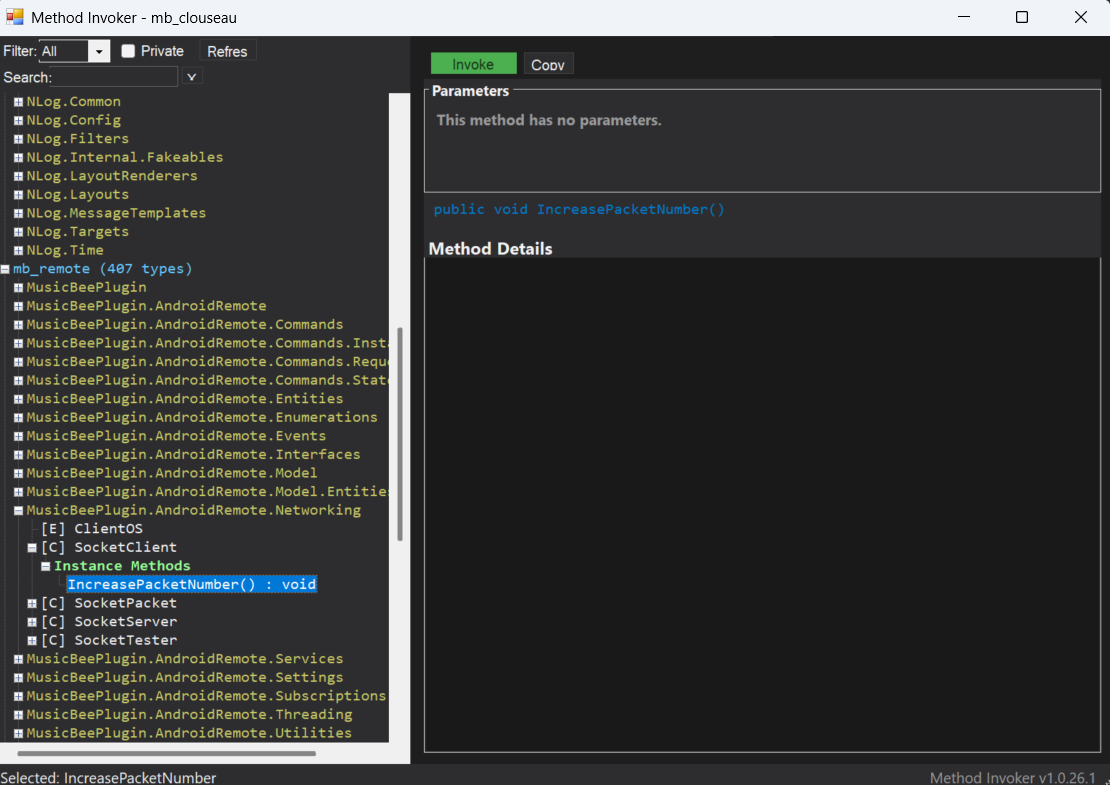

• Method Invoker: Call any method via reflection with parameter input and return value display

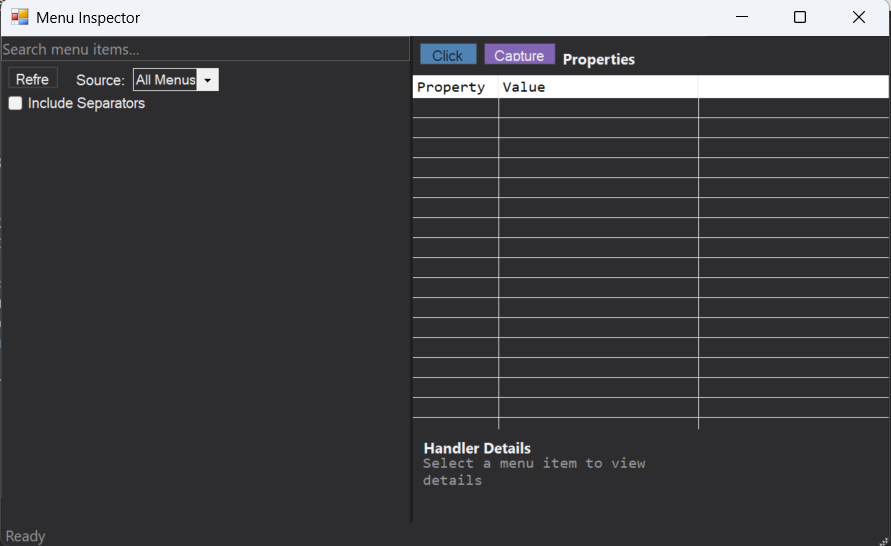

• Menu Inspector: Walk MusicBee's complete menu hierarchy and invoke items programmatically

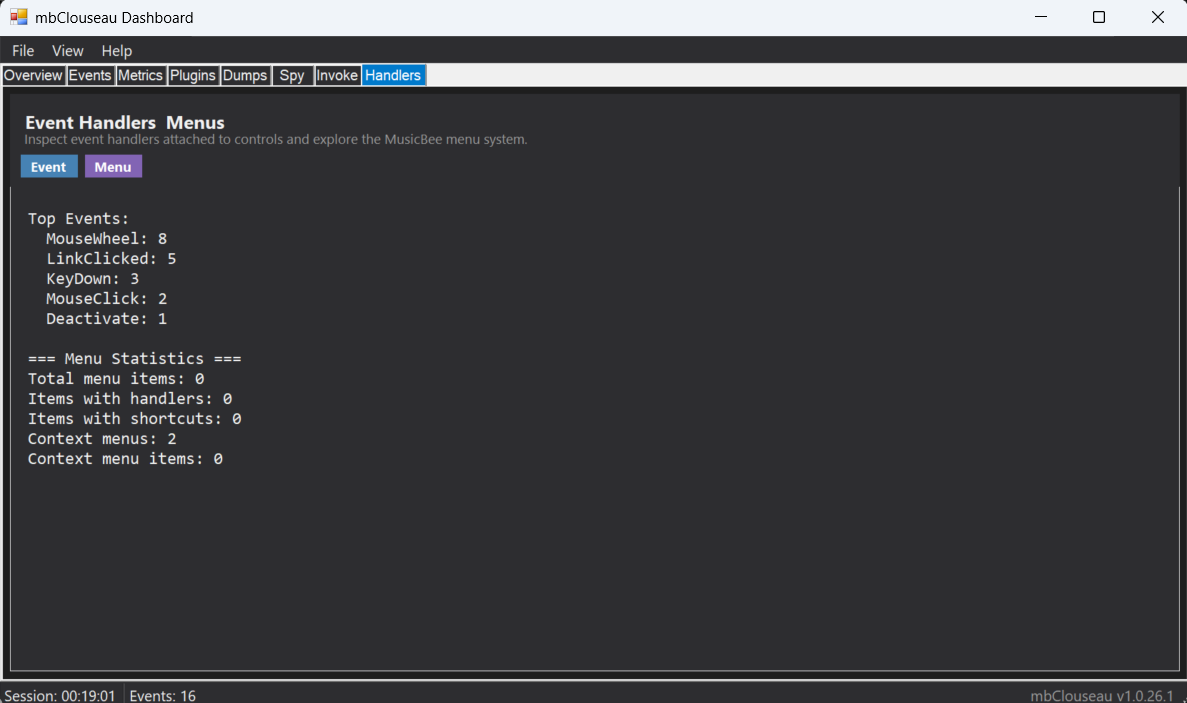

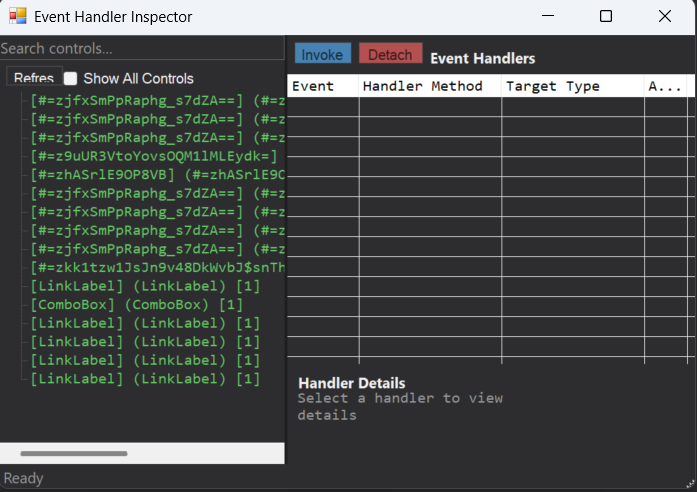

• Event Handler Inspector: View all event handlers attached to any WinForms control

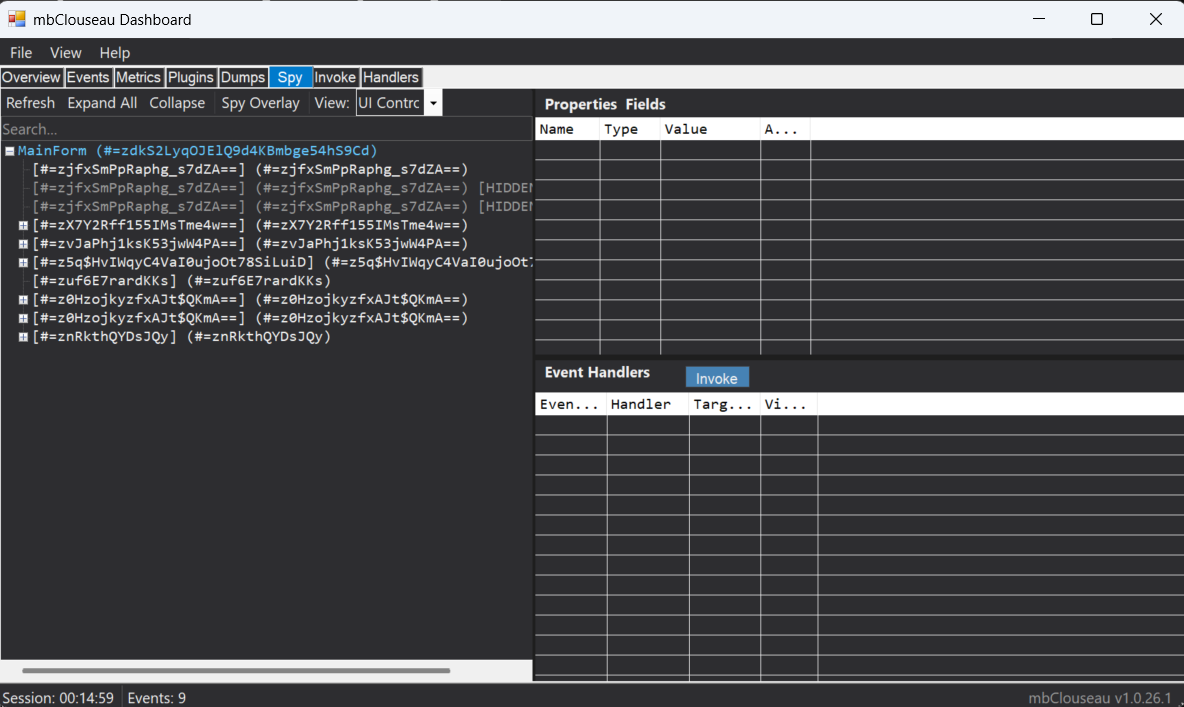

• Spy Tab: Deep object inspection showing properties, fields, and runtime values

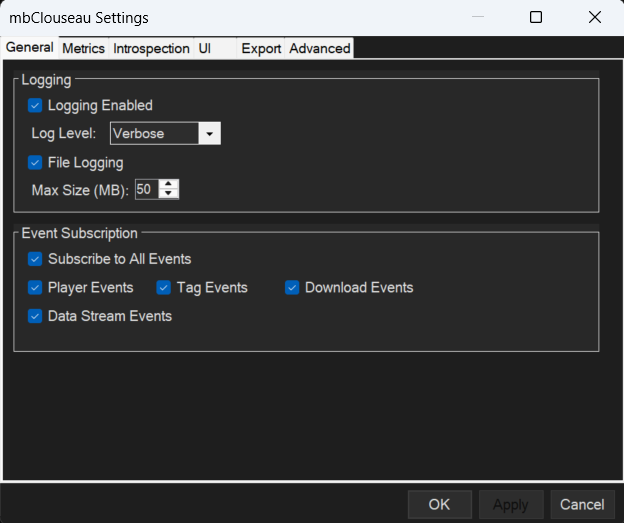

Notification Subscription

ReceiveNotificationFlags

Clouseau subscribes to all four notification flags:

_about.ReceiveNotifications =
    ReceiveNotificationFlags.PlayerEvents |      // 0x1
    ReceiveNotificationFlags.DataStreamEvents |  // 0x2
    ReceiveNotificationFlags.TagEvents |         // 0x4
    ReceiveNotificationFlags.DownloadEvents;     // 0x8

NotificationType Events (40 Total)

#	Event	Value	Category	Description
1	PluginStartup	0	Core	Plugin initialized successfully
2	TrackChanged	1	Player	Current track changed
3	PlayStateChanged	2	Player	Play/pause/stop state changed
4	AutoDjStarted	3	Player	AutoDJ mode started
5	AutoDjStopped	4	Player	AutoDJ mode stopped
6	VolumeMuteChanged	5	Player	Mute toggled
7	VolumeLevelChanged	6	Player	Volume level changed
8	NowPlayingListChanged	7	Queue	(Obsolete) Use PlayingTracksChanged
9	NowPlayingArtworkReady	8	Player	Artwork loaded for current track
10	NowPlayingLyricsReady	9	Player	Lyrics loaded for current track
11	TagsChanging	10	Tags	Tags about to be modified
12	TagsChanged	11	Tags	Tags were modified
13	RatingChanged	12	Tags	Track rating changed
14	PlayCountersChanged	13	Tags	Play/skip count updated
15	ScreenSaverActivating	14	System	Screen saver about to activate
16	RatingChanging	15	Tags	Rating about to change
17	TrackChanging	16	Player	Track about to change
18	ShutdownStarted	17	Core	MusicBee shutting down
19	NowPlayingListEnded	18	Queue	Reached end of queue
20	EmbedInPanel	19	UI	Plugin panel embedded
21	PlayerRepeatChanged	20	Player	Repeat mode changed
22	PlayerShuffleChanged	21	Player	Shuffle toggled
23	PlayerEqualiserOnOffChanged	22	Player	Equalizer toggled
24	PlayerScrobbleChanged	23	Player	Scrobbling toggled
25	ReplayGainChanged	24	Player	ReplayGain mode changed
26	FileDeleting	25	Library	File about to be deleted
27	FileDeleted	26	Library	File was deleted
28	ApplicationWindowChanged	27	UI	Window state changed
29	StopAfterCurrentChanged	28	Player	Stop after current toggled
30	LibrarySwitched	29	Library	Active library changed
31	FileAddedToLibrary	30	Library	New file added to library
32	FileAddedToInbox	31	Library	New file added to inbox
33	SynchCompleted	32	Sync	Device sync completed
34	DownloadCompleted	33	Download	Download finished
35	MusicBeeStarted	34	Core	MusicBee fully initialized
36	PlayingTracksChanged	35	Queue	Now playing list modified
37	PlayingTracksQueueChanged	36	Queue	Queue portion changed
38	PlaylistCreated	37	Playlist	New playlist created
39	PlaylistUpdated	38	Playlist	Playlist modified
40	PlaylistDeleted	39	Playlist	Playlist deleted

MusicBee API Categories

1. MB_* - MusicBee Core

Core MusicBee operations: window handle, panels, menus, background tasks, localization.

• MB_Trace() - Write to MusicBee trace log
• MB_GetWindowHandle() - Get main window handle
• MB_AddMenuItem() - Add menu item
• MB_AddPanel() - Add dockable panel
• MB_CreateBackgroundTask() - Create background task

2. Setting_* - Settings

Access MusicBee settings: storage path, skin, fonts, thresholds.

• Setting_GetPersistentStoragePath() - Plugin data folder
• Setting_GetSkin() - Current skin name
• Setting_GetValue() - Get setting by ID

3. Library_* - Library Operations

Query library, get/set tags, manage artwork.

• Library_QueryFilesEx() - Query all library files
• Library_GetFileTag() - Get metadata tag
• Library_SetFileTag() - Set metadata tag
• Library_GetArtworkEx() - Get artwork

4. Player_* - Player Control

Playback control: play, pause, stop, volume, shuffle, repeat.

• Player_GetPlayState() - Current play state
• Player_GetPosition() - Playback position (ms)
• Player_PlayPause() - Toggle play/pause
• Player_GetVolume() - Get volume (0.0-1.0)

5. NowPlaying_* - Current Track

Information about the currently playing track.

• NowPlaying_GetFileUrl() - Current track path
• NowPlaying_GetDuration() - Duration (ms)
• NowPlaying_GetFileTag() - Get tag value
• NowPlaying_GetArtwork() - Get artwork

6. NowPlayingList_* - Queue

Now Playing queue management.

• NowPlayingList_GetCurrentIndex() - Current index
• NowPlayingList_QueueNext() - Queue as next
• NowPlayingList_Clear() - Clear queue

7. Playlist_* - Playlists

Playlist management: create, modify, query.

• Playlist_QueryPlaylists() - List playlists
• Playlist_CreatePlaylist() - Create playlist
• Playlist_AppendFiles() - Add files

Log Entry Structure

{
  "ts": "2026-01-01 14:32:01.234",
  "level": "INFO",
  "seq": "1234",
  "cat": "Player",
  "event": "TrackChanged",
  "eventId": "1",
  "msg": "Now playing: Dark Side of the Moon - Pink Floyd",
  "src": "C:\\Music\\song.mp3",
  "Timestamp": "2026-01-01T14:32:01.234Z",
  "Artist": "Pink Floyd",
  "Title": "Dark Side of the Moon",
  "Album": "DSOTM",
  "Duration": "234000",
  "Bitrate": "320",
  "Format": "FLAC",
  "Position": "0"
}

The events.jsonl file contains one JSON object per line with ALL context data for easy parsing.

Log Categories

Category	Events
Core	PluginStartup, ShutdownStarted, MusicBeeStarted
Player	TrackChanged, PlayStateChanged, Volume*, Shuffle, Repeat, etc.
Queue	PlayingTracksChanged, NowPlayingListEnded, etc.
Library	FileAdded*, FileDeleted, LibrarySwitched
Tags	TagsChanged, RatingChanged, PlayCountersChanged
Playlist	PlaylistCreated, PlaylistUpdated, PlaylistDeleted
Sync	SynchCompleted
Download	DownloadCompleted
UI	EmbedInPanel, ApplicationWindowChanged
System	ScreenSaverActivating

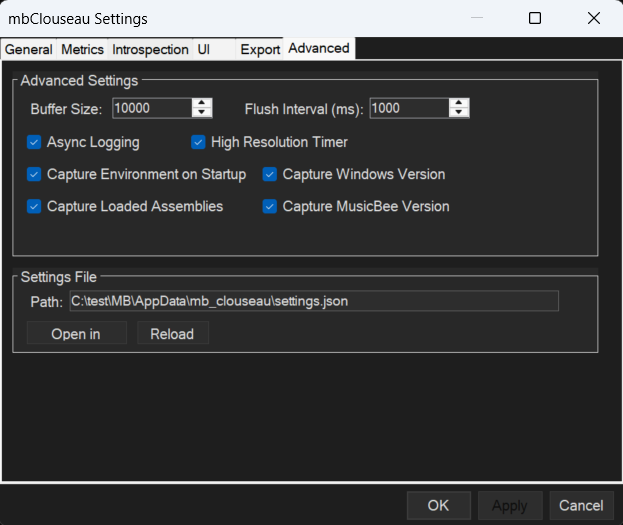

Settings File

Location: %AppData%\MusicBee\mb_clouseau\settings.json

{
  "logLevel": "verbose",
  "enabledCategories": ["Player", "Library", "Tags", "Queue", "Playlist"],
  "fileLogging": true,
  "maxLogSizeMB": 10,
  "autoScroll": true,
  "timestampFormat": "HH:mm:ss.fff",
  "showSourceFile": true,
  "exportFormat": "json"
}

Architecture

mb_clouseau/
├── mb_clouseau.csproj           # Project file
├── plugin/
│   ├── Plugin.cs                # Entry point, event routing, inline log panel
│   ├── MusicBeeInterface.cs     # MusicBee API definitions (44KB)
│   ├── NLog.config              # Logging configuration
│   ├── settings.json            # Default settings template
│   ├── Core/
│   │   ├── ClouseauSettings.cs  # Settings manager (JSON)
│   │   ├── LogManager.cs        # NLog wrapper with named loggers
│   │   └── StateManager.cs      # Session state, event counts
│   ├── Logging/
│   │   ├── LogEntry.cs          # Structured log entry model
│   │   ├── EventLogger.cs       # Event handler with rich context for all 40 events
│   │   └── LogBuffer.cs         # Thread-safe ring buffer with filtering/export
│   ├── Metrics/
│   │   ├── MetricsCollector.cs  # Orchestrator (5s collection, 30s logging)
│   │   ├── MetricsSnapshot.cs   # Snapshot data model
│   │   ├── SystemMetrics.cs     # CPU, memory, disk
│   │   ├── ProcessMetrics.cs    # MusicBee process stats
│   │   ├── ClrMetrics.cs        # GC, heap, threading
│   │   └── AudioMetrics.cs      # Audio device info
│   ├── Introspection/
│   │   ├── PluginInfo.cs        # Plugin metadata model
│   │   ├── PluginDiscovery.cs   # Plugin folder scanner
│   │   ├── PluginMonitor.cs     # Track plugin registrations
│   │   ├── ApiInterceptor.cs    # Hook MusicBee API calls
│   │   └── StateDumper.cs       # Deep state snapshots
│   └── UI/
│       ├── LogViewerPanel.cs    # Standalone log panel component
│       ├── SettingsDialog.cs    # Full settings UI with tabs
│       └── DashboardForm.cs     # Dashboard window with multiple tabs
├── deploy/www/                  # Website files
├── README.md
├── SPEC.md
└── CHANGELOG.md

Building from Source

Prerequisites

• Visual Studio 2022 or .NET SDK
• .NET Framework 4.8 targeting pack

Build Commands

# Using build script
build.cmd Release

# Or using dotnet directly
dotnet build -c Release

Either method works. Output: publish\mb_clouseau.dll

Innovative Features

What makes Clouseau unique for MusicBee plugin development:

1. API Call Interception

Hook into MusicBee's API to log all plugin interactions. Every API call is timed and recorded:

• Call Statistics: Count, min/max/average duration per method
• Slow Call Detection: Alerts when calls exceed thresholds (default: warn at 100ms, error at 500ms)
• Anomaly Detection: Detects rapid-fire calls (>100/second) and high error rates (>10%)
• Recent Call History: Last 1,000 API calls with timing data

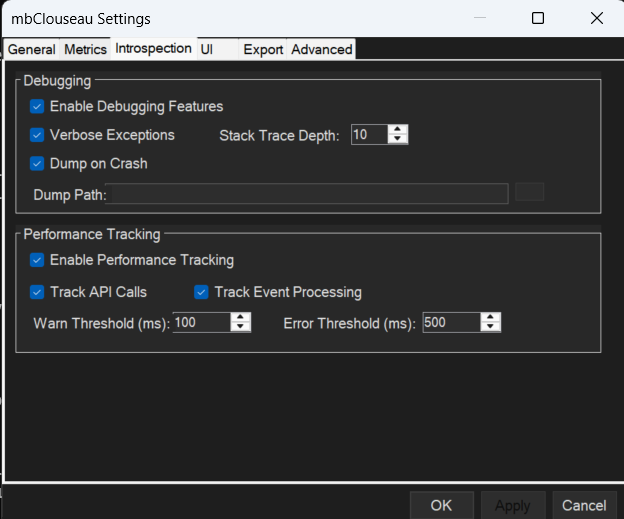

Enable/Disable: Settings > Introspection tab > "Track API Calls" checkbox, or set Performance.TrackApiCalls in settings.json

2. CLR/.NET Internals

Deep visibility into the .NET runtime - data developers rarely see:

• GC Collection Counts: Gen 0, Gen 1, Gen 2 (full) collections
• % Time in GC: How much CPU time the garbage collector consumes
• Heap Sizes: Gen 0/1/2 heap and Large Object Heap (LOH) sizes
• GC Pressure Detection: Automatic alerts when GC is working too hard

3. Handle Leak Detection

Track Windows handles to find resource leaks before they crash MusicBee:

• GDI Objects: Fonts, brushes, bitmaps, device contexts
• USER Objects: Windows, menus, icons, cursors
• Kernel Handles: Files, registry keys, events, mutexes
• Trend Analysis: 5-second snapshots over 1-minute sliding window
• Leak Source Identification: Reports which handle type is leaking (GDI, USER, or Kernel)

Why Warnings Appear and Disappear

This is expected behavior, not a bug. Here's how it works:

• Plugin loads: Handles increase consistently (+2, +3, +2 per sample) → Warning fires after 30 seconds
• Plugin stabilizes: Growth stops or GC runs, some samples show negative deltas → <75% positive samples → Warning clears
• Oldest samples age out: After 60 seconds, the initial growth samples drop from the window → Warning stays clear

How to Interpret Warnings

Scenario	Meaning	Action
Warning appears once, then clears	Normal startup overhead or temporary allocation	No action needed
Warning appears repeatedly over hours	Likely a real leak	Check metrics log for sustained growth
GDI Objects leaking	Fonts, brushes, bitmaps not disposed	Review Graphics object lifecycle
USER Objects leaking	Windows/controls not destroyed	Review Form/Control disposal
Kernel Handles leaking	Files, registry, events not closed	Review file/stream disposal

Thresholds: Handle leak = 10+ handles gained per minute with sustained trend. Memory leak = 5+ MB gained per minute with sustained trend. Detection requires at least 30 seconds (6 samples) of data.

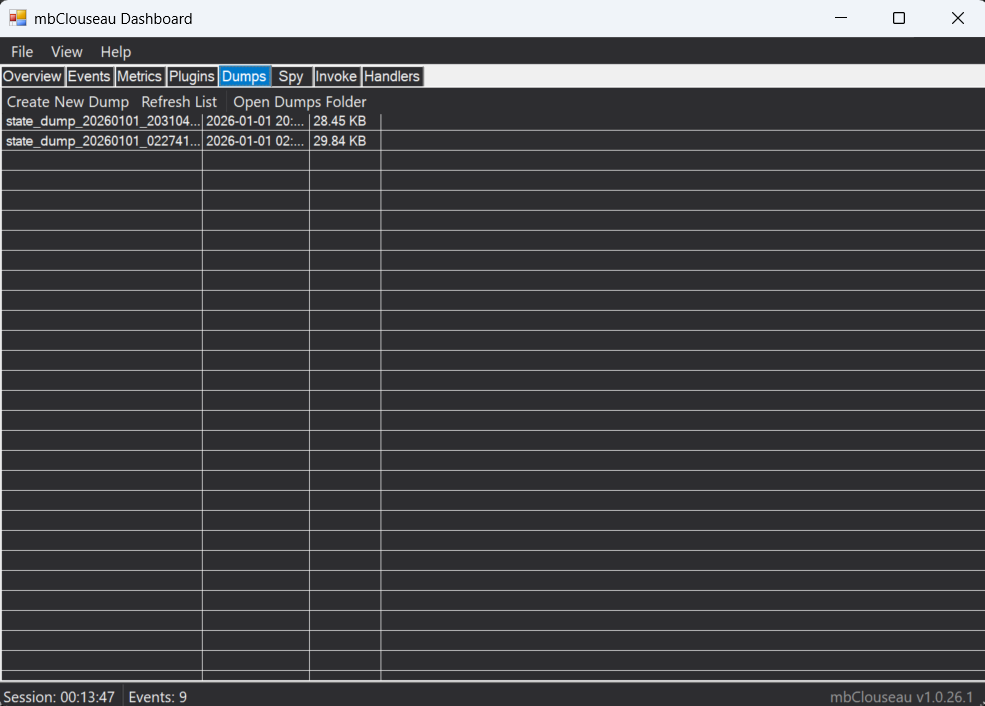

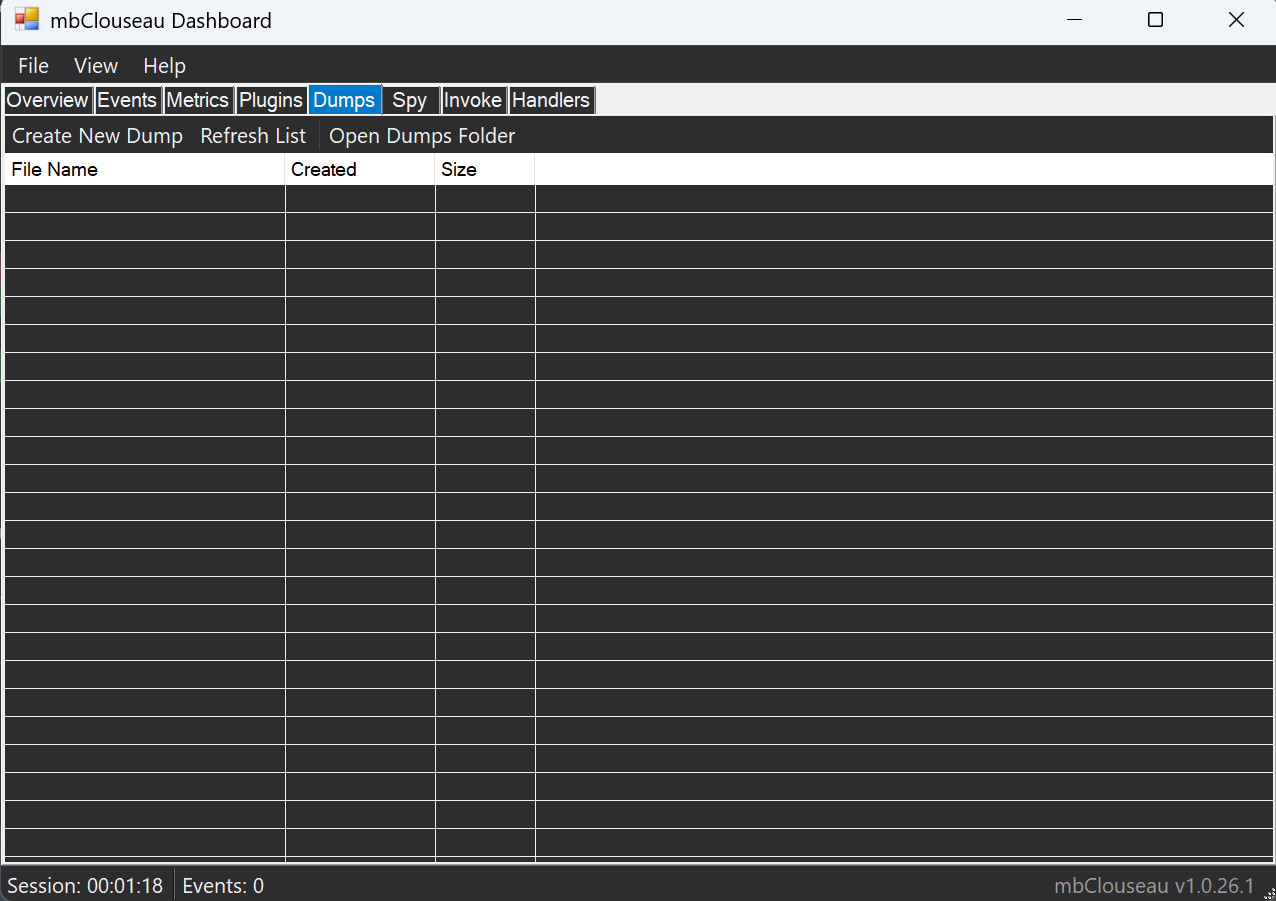

4. Deep State Dumps

Capture complete application state for debugging:

• Player state (current track, position, volume, shuffle, repeat)
• Loaded assemblies and their versions
• Thread information and stack traces
• Memory snapshot with heap statistics
• Registered plugins and their metadata
• Queue contents and playlist state

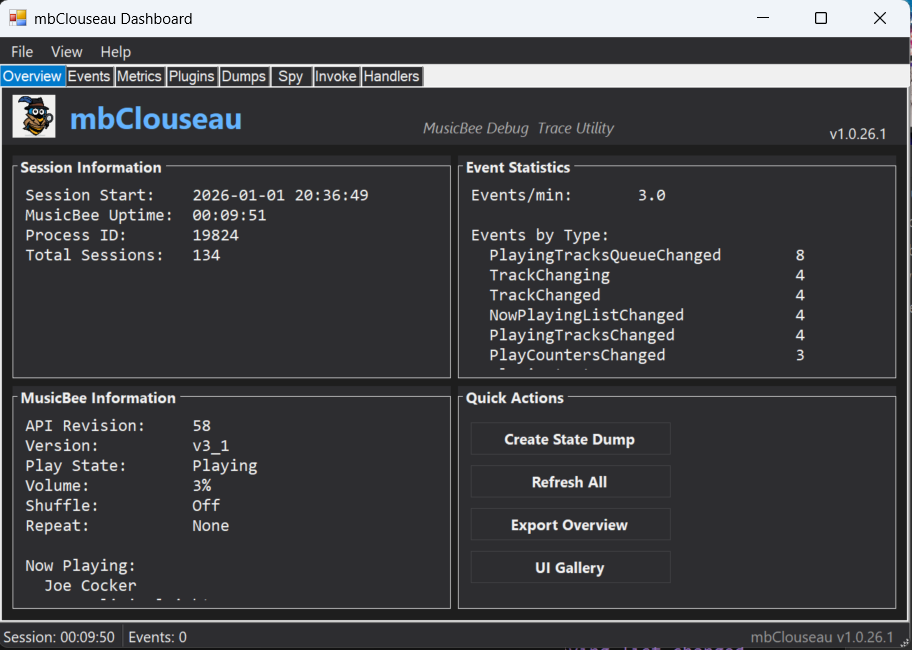

Create a dump: Dashboard > Diagnostics tab > "Create State Dump" button

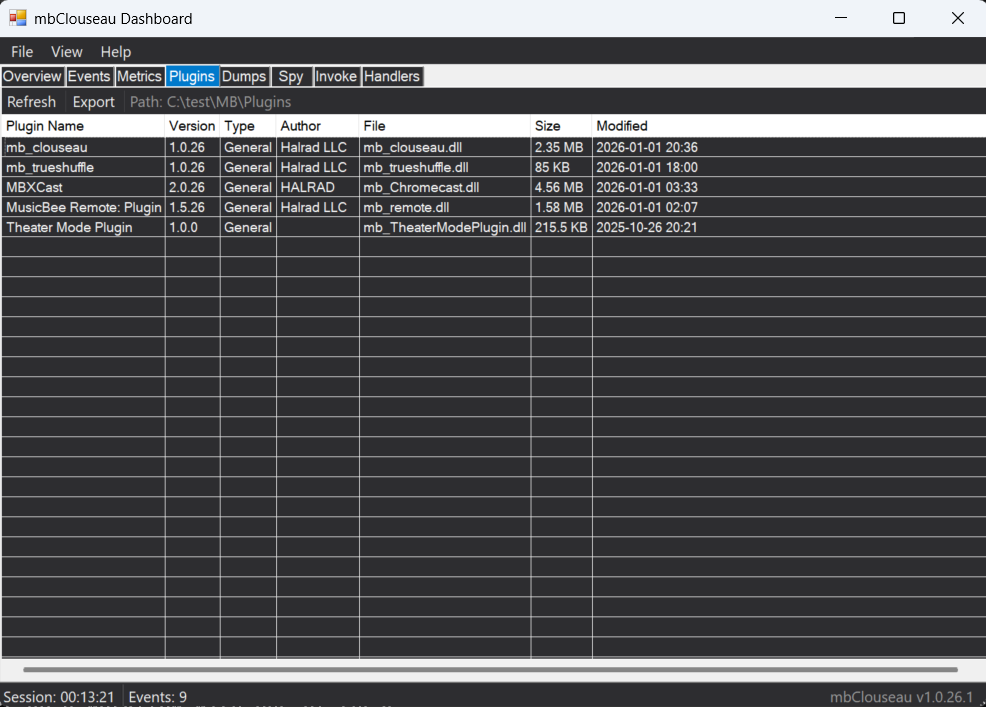

5. Plugin Discovery

Scan and inspect all installed MusicBee plugins:

• Plugin name, version, author, type
• File location and load status
• Validation indicators (valid plugin vs. failed to load)
• Error details for plugins that failed to initialize

6. Rich Event Context

Every MusicBee event includes 30+ context fields:

• Track Metadata: Artist, Title, Album, Genre, Year, Rating, BPM, etc.
• Playback State: Position, Duration, Volume, Shuffle, Repeat, Crossfade
• Audio Properties: Bitrate, Sample Rate, Channels, Format, Codec
• Queue Info: Current index, has next/prior tracks
• File Properties: Size, Date Added, Last Played, Play Count

Configuration

Settings File

Location: %AppData%\MusicBee\mb_clouseau\settings.json

Key Settings

Setting	Default	Description
Performance.TrackApiCalls	true	Enable API call interception and timing
Performance.WarnThresholdMs	100	Warn when API call exceeds this (ms)
Performance.ErrorThresholdMs	500	Error when API call exceeds this (ms)
SystemMetrics.Enabled	true	Collect CPU, memory, disk metrics
SystemMetrics.CollectionIntervalMs	5000	How often to collect metrics (ms)
UI.AutoScroll	true	Auto-scroll log panel to newest entries
UI.MaxDisplayedEntries	1000	Maximum entries in log viewer
Advanced.BufferSize	10000	Log entries kept in memory

Advanced Introspection Tools

Clouseau includes powerful introspection tools for deep debugging and exploration of MusicBee internals.

UI Gallery

Screenshot mode for capturing plugin dialogs and MusicBee windows.

• Auto-Refresh: Periodically capture updated screenshots
• Window Discovery: Lists all open windows and dialogs
• Export: Save screenshots for documentation or bug reports

Access: Dashboard > View menu > UI Gallery

App Spy Overlay

Transparent overlay that highlights UI elements under your cursor.

• Control Info: Name, type, and bounds of controls
• Click-Through: Overlay doesn't interfere with normal use
• Real-Time: Updates as you move the mouse

Access: Dashboard > View menu > Spy Overlay

Method Invoker

Browse loaded assemblies and invoke methods via reflection.

• Assembly Browser: Tree view of all loaded assemblies and types
• Method Filtering: Show/hide private methods, search by name
• Parameter Input: UI for entering method parameters with type validation
• Return Values: Display formatted results and execution time
• Static Methods: Invoke without requiring an object instance

Access: Dashboard > Invoke tab > Open button, or View menu > Method Invoker

Event Inspector

View and manage event handlers attached to WinForms controls.

• Handler Discovery: List all event handlers on any control
• Handler Details: See method name, target type, and visibility
• Invoke Handlers: Trigger event handlers manually for testing
• Control Tree: Navigate the UI hierarchy to find controls

Access: Dashboard > Handlers tab > Event button

Menu Inspector

Walk MusicBee's menu hierarchy and invoke menu items.

• Menu Tree: Complete hierarchy of all menus and submenus
• Item Details: Text, shortcut keys, enabled/checked state
• Invoke Items: Click menu items programmatically
• Search: Find menu items by text

Access: Dashboard > Handlers tab > Menu button

Spy Tab (Reflection Explorer)

Deep .NET introspection for exploring objects at runtime.

• Properties & Fields: View all properties and fields with values
• Type Information: See types, access modifiers, attributes
• Event Handlers: List subscribed handlers on any control
• Object Selection: Select controls via overlay for inspection

Access: Dashboard > Spy tab

Use Cases

Plugin Development

See exactly what events fire when users interact with MusicBee. Understand the sequence and timing of notifications.

Debugging

When your plugin isn't receiving expected events, use Clouseau to verify what's actually happening.

Performance Profiling

Identify slow API calls, memory leaks, and GC pressure that affect user experience.

API Discovery

Learn what data is available from each API method by watching real calls in action.

Plugin Conflict Analysis

Watch what other plugins are doing. Debug conflicts by seeing who's changing what and when.

UI Reverse Engineering

Use the Spy Overlay and Event Inspector to understand how MusicBee's UI is constructed and how controls interact.

Case Study: Cross-Thread Panel Creation

This case study demonstrates how Clouseau's own logging capabilities helped diagnose a subtle UI bug.

The Problem

The Clouseau dockable panel appeared blank on MusicBee startup. The panel header (Clear, Dashboard, Settings buttons) was visible, but the ListBox showing events was completely empty. Toggling the panel off and back on would make it work correctly.

Initial Debugging Attempts

Several fixes were tried without success:

• Deferred control creation with Application.Idle
• VisibleChanged/ParentChanged event handlers with forced refresh
• HandleCreated event for timer initialization
• BeginInvoke for deferred updates
• Delayed timer refresh (1.5 seconds after startup)
• Switching from owner-draw to standard ListBox mode

None of these worked because they were treating symptoms, not the root cause.

Using the Logs

The breakthrough came from checking Clouseau's own error log:

%AppData%\MusicBee\mb_clouseau\logs\errors.log

The log revealed the exact exception:

2026-01-01 03:38:13|ERROR|Clouseau.UI|Failed to create dockable panel
System.ArgumentException: Controls created on one thread cannot be parented
to a control on a different thread.
   at System.Windows.Forms.Control.ControlCollection.Add(Control value)
   at MusicBeePlugin.Plugin.OnDockablePanelCreated(Control panel)

Root Cause

MusicBee calls OnDockablePanelCreated from a background thread during startup, but WinForms controls must be created and parented on the UI thread. The exception was being caught and logged, but the panel appeared blank because no controls were added.

The Fix

public int OnDockablePanelCreated(Control panel)
{
    // Initialize plugin (safe on any thread)
    if (!_initialized) InitializePlugin();

    // Marshal control creation to UI thread if needed
    if (panel.InvokeRequired)
    {
        LogManager.UI.Debug("Marshaling to UI thread");
        panel.Invoke(new Action(() => CreatePanelControls(panel)));
    }
    else
    {
        CreatePanelControls(panel);
    }

    return Convert.ToInt32(250 * dpiScaling);
}

Key Takeaways

2. Log file locations:

• %AppData%\MusicBee\mb_clouseau\logs\errors.log - Exceptions and errors
• %AppData%\MusicBee\mb_clouseau\logs\clouseau.log - General plugin activity
• %AppData%\MusicBee\mb_clouseau\logs\events.log - MusicBee notification events

3. Cross-thread exceptions in WinForms: When a panel appears blank or controls don't show, check for thread affinity issues. Use InvokeRequired and Invoke to marshal to the UI thread.

4. Silent failures: The try/catch was logging the error but the blank panel gave no visual indication. Always check logs when UI doesn't behave as expected.

5. Eat your own dogfood: Using Clouseau to debug Clouseau proved the value of comprehensive logging for plugin development.

MusicBee Clouseau
