TMRemote
Orchestrate 8x8 HDMI Matrix Switching & Smart Display Management
Version 2.0.25.1116
TMRemote unifies matrix switching and display control in one powerful application.Matrix Switch & Display Control Software
Matrix Switching: Control an OREI BK-808 8x8 HDMI matrix switch with routing interface, 8 presets, and EDID configuration.
Display Control: Manage ToteVision AIO5501 55" multi-touch displays with power control, input switching, and audio adjustment.
Support: Built with .NET 8 for Windows.
📺 Triangularity Control Architecture
TMRemote implements the Triangularity control system - a unified three-mode interface that works across ALL features:
Visual graphical interface with buttons, sliders, and matrix grid for intuitive control
Command mode for direct control operations and quick actions
Command-line interface for remote shell configuration
This architecture applies to both matrix switching AND display control, providing consistent interaction methods across all functionality.
✨ Matrix Switch Features

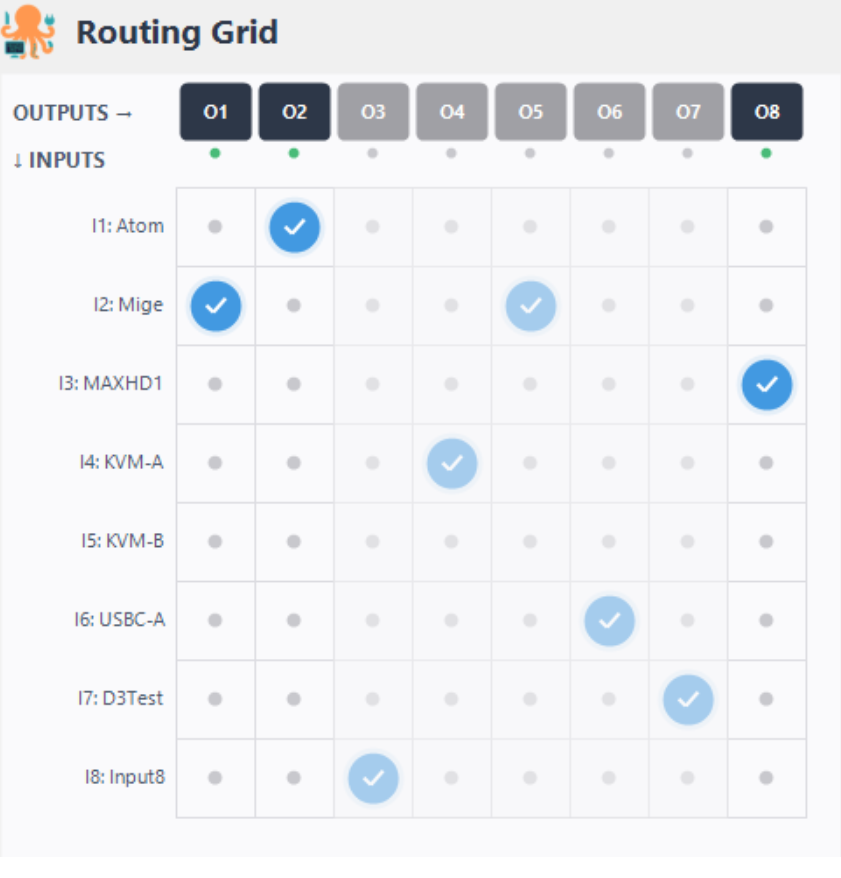

🎯 8x8 Matrix Switching

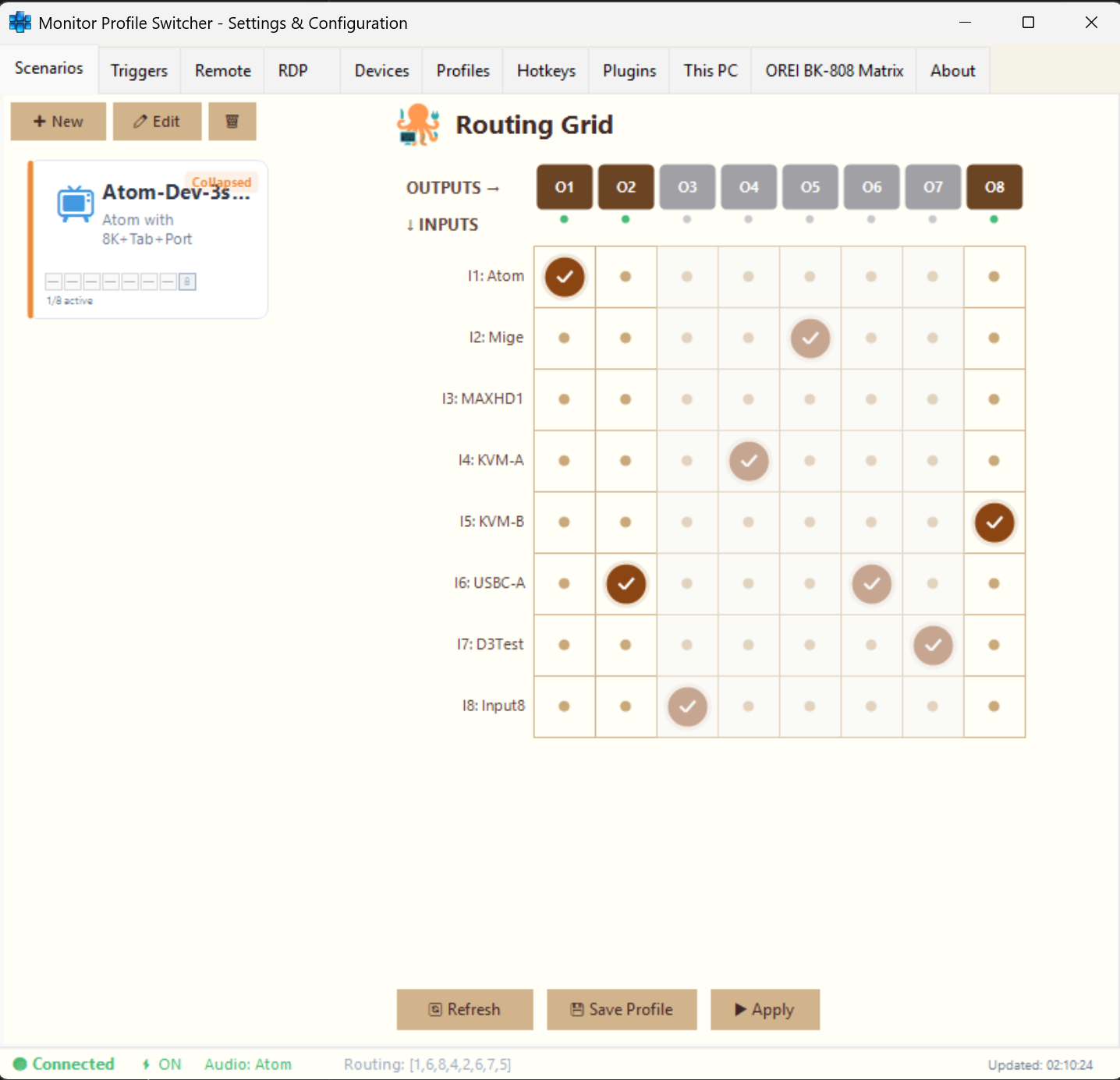

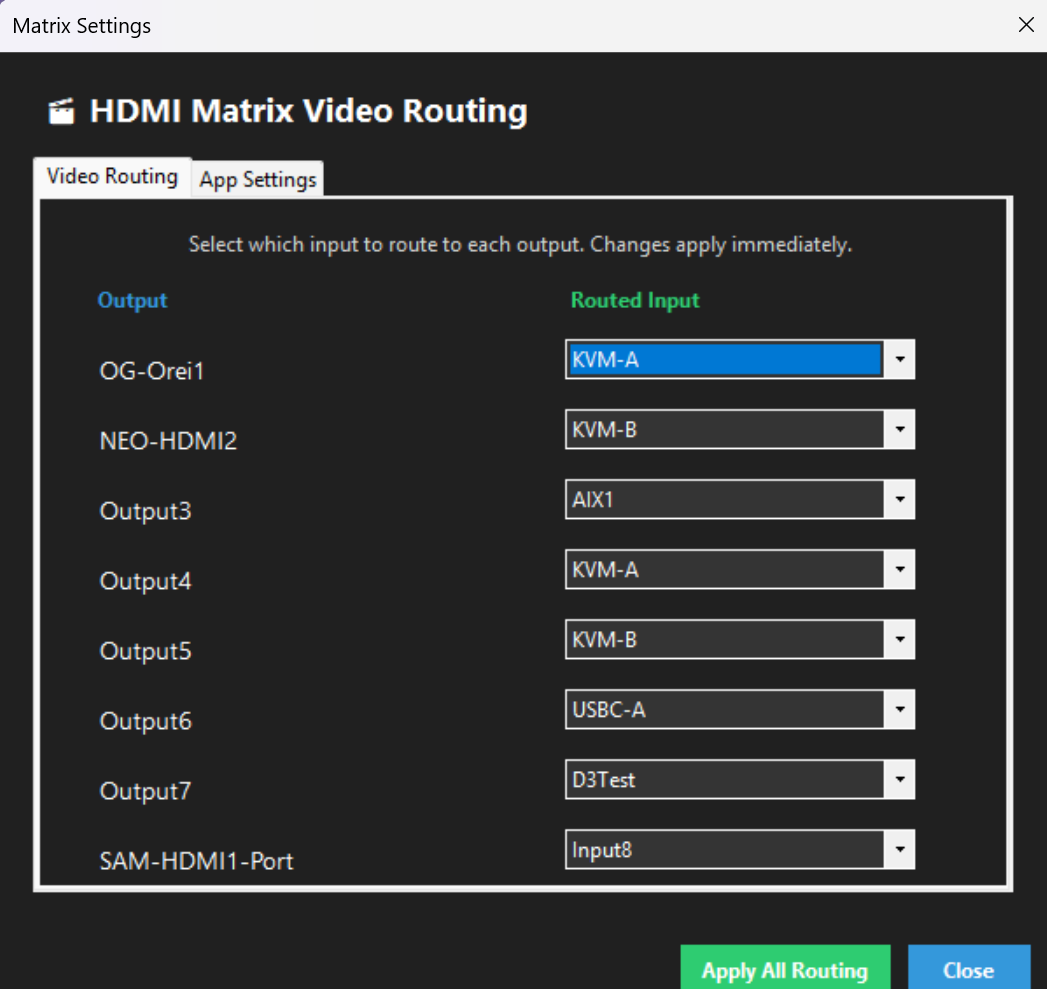

Switch any of 8 HDMI inputs to any of 8 outputs. Visual matrix grid interface for controlling routing. Each output can display any input source.
💾 Preset Management

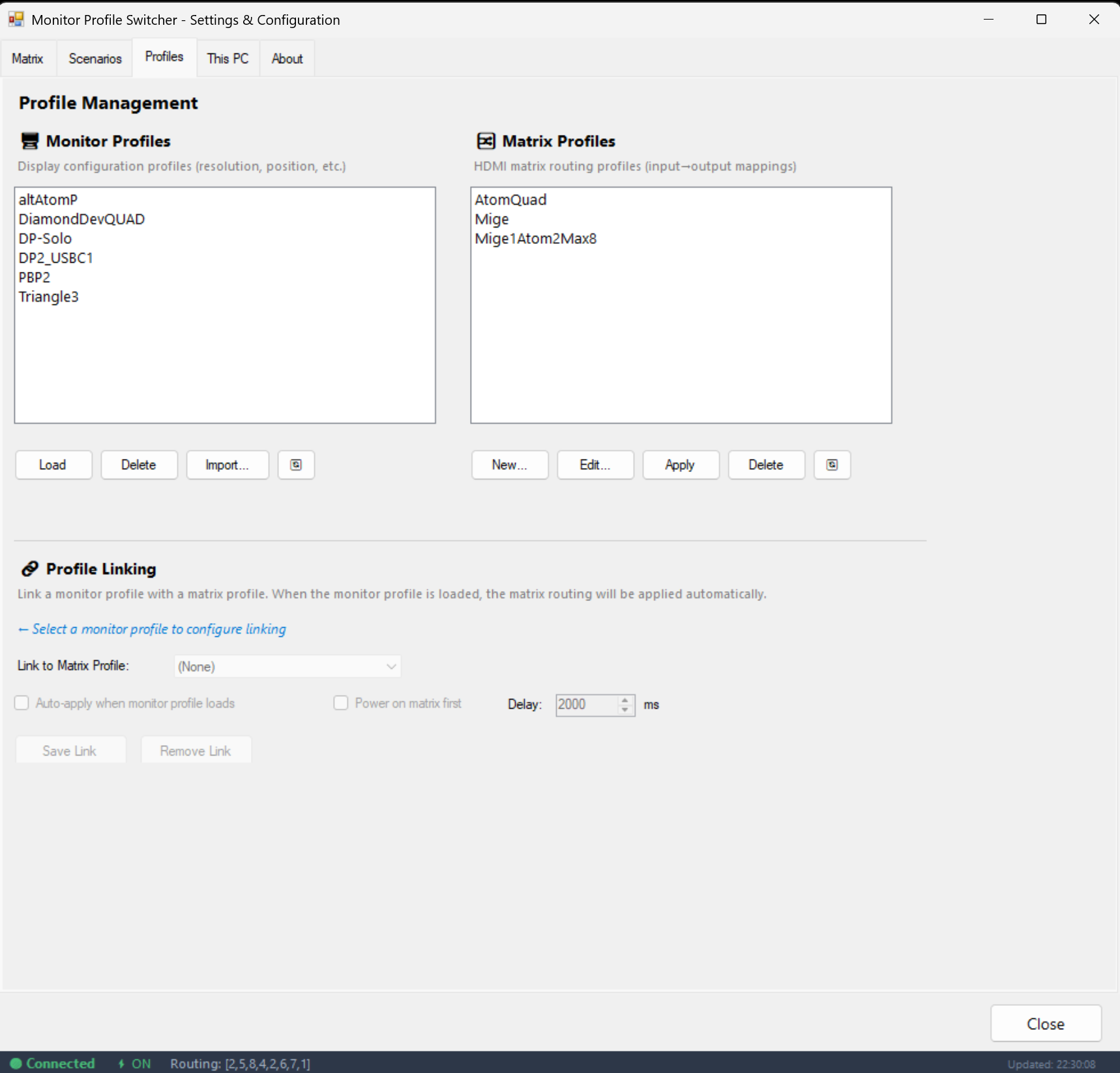

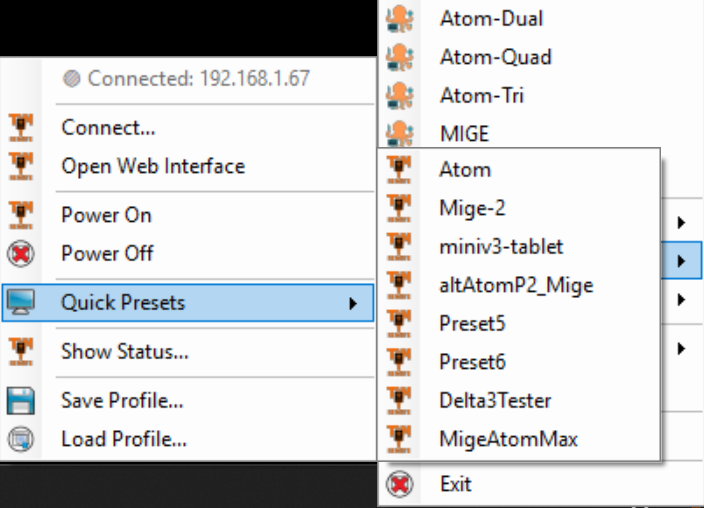

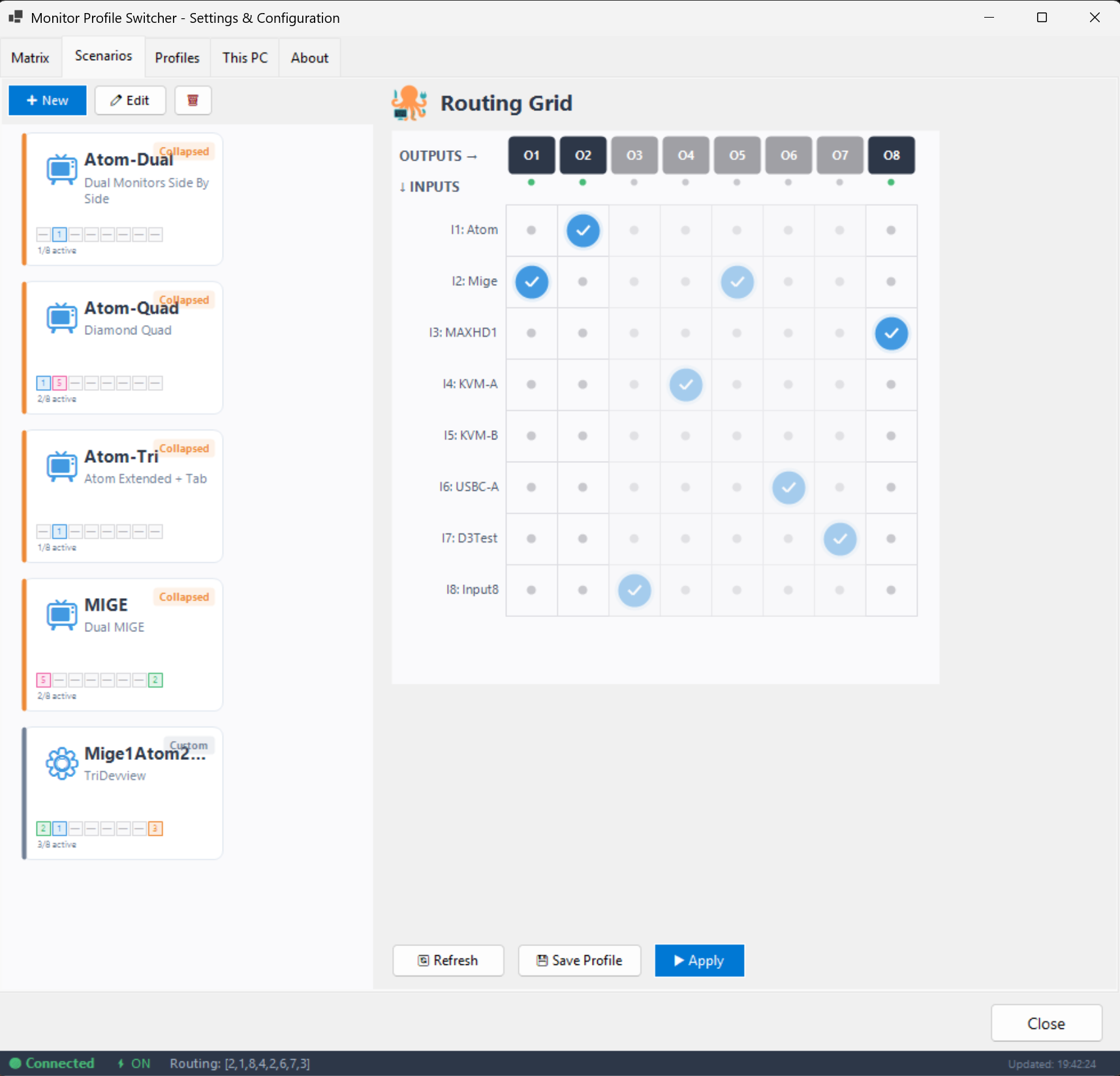

Save and recall up to 8 routing configurations. Store different input/output combinations for various scenarios and quickly switch between them.
🎨 EDID Management
Configure EDID settings per input with support for various resolutions including 8K@60Hz, 4K@120Hz HDR, and standard 1080p. Copy EDID from outputs or use preset profiles.
⚡ Resolution Support
Support for HDMI 2.1 features including 8K@60Hz 4:2:0 12bit and 4K@120Hz 4:4:4 12bit. Compatible with VRR, ALLM, QFT, QMS, and SBTM for gaming and professional applications.
🔊 Audio Extraction
Independent audio routing with optical and analog outputs. Extract audio from any source for external processing or distribution.
📡 Control Protocols
HTTP JSON API for network control, RS232 serial communication, and IP-to-serial gateway support for flexible connectivity options.
🖥️ Display Control Features
⚡ Power Control
Toggle power controls for displays and connected devices. Manage power state with visual feedback and automation support.
🔊 Audio Management
Volume slider for adjustments, fine-tuning controls (±1), mute toggle with visual feedback.
📺 Input Source Switching
Access to HDMI 1-3, VGA 1-3, AV, Android, and PC inputs with visual indication of active source.
🎮 Navigation Controls
Full directional pad, home/back/menu buttons, channel controls, and function keys F1-F12 for complete device control.
💻 Triangularity Control System
UX: Triangularity UX graphical interface for visual control.
CMD: Command mode for direct control operations.
CLI: Command-line interface for remote shell configuration.

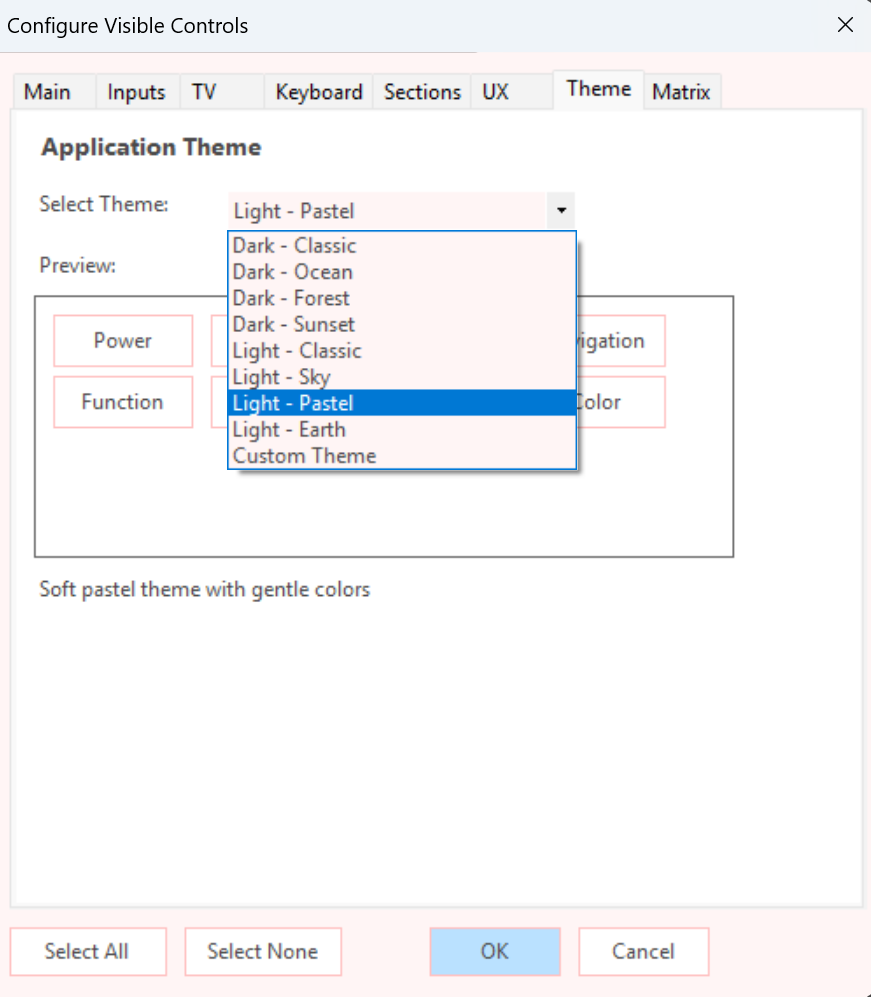

🎨 Modern Interface
Eye-friendly interface with multiple theme options, flat design, emoji icons, and responsive layout that adapts to your needs.
🎯 Matrix Switching Examples
Input 1 (Laptop) → Output 1-4
(Mirror to all displays)
Inputs 1-4 → Outputs 1-4
(Independent switching)
8 Sources → 8 Monitors
(Full matrix routing)
4 Games → 8 TVs
(Mixed routing)
🖼️ Application Interface

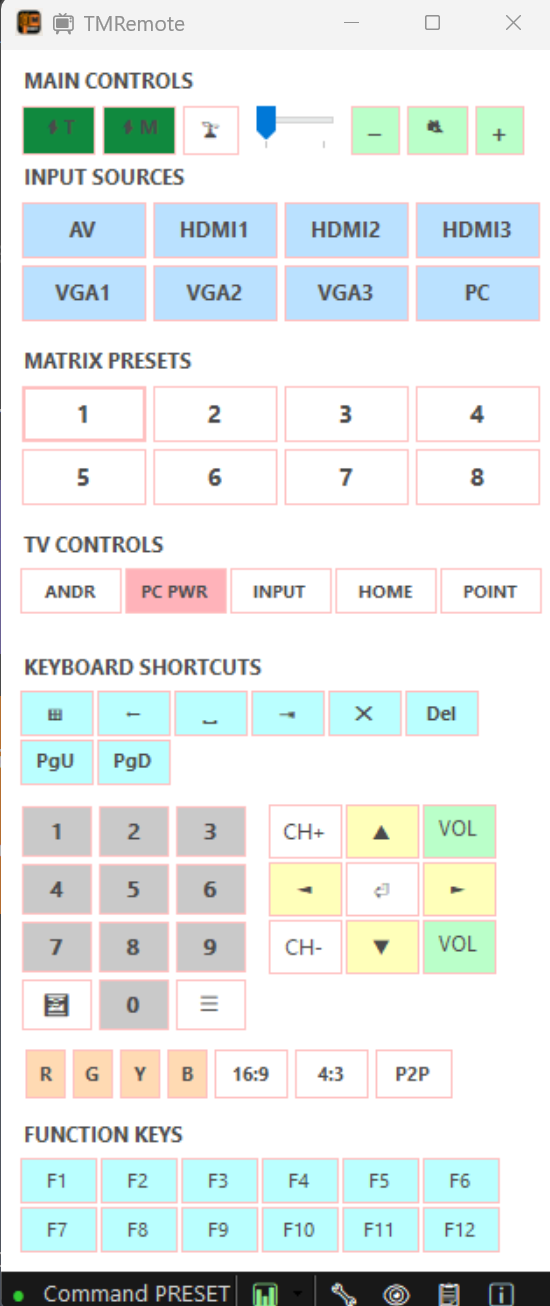

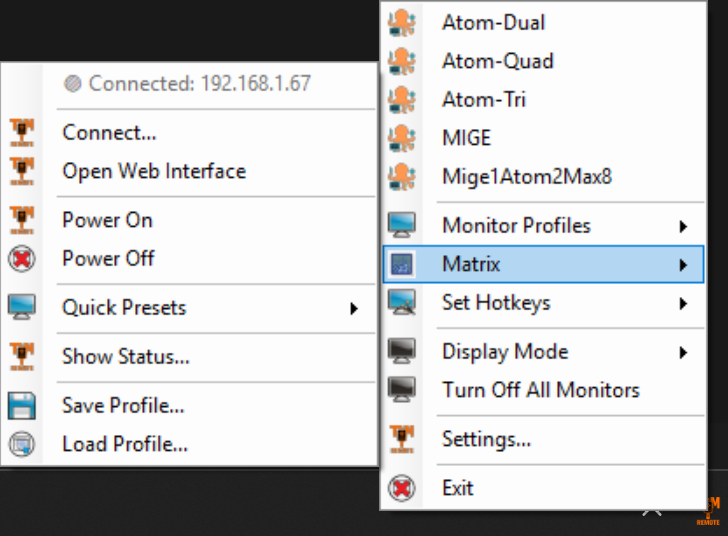

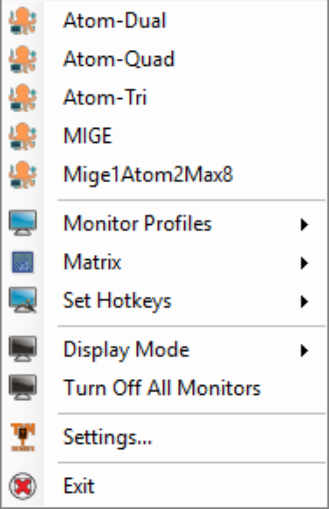

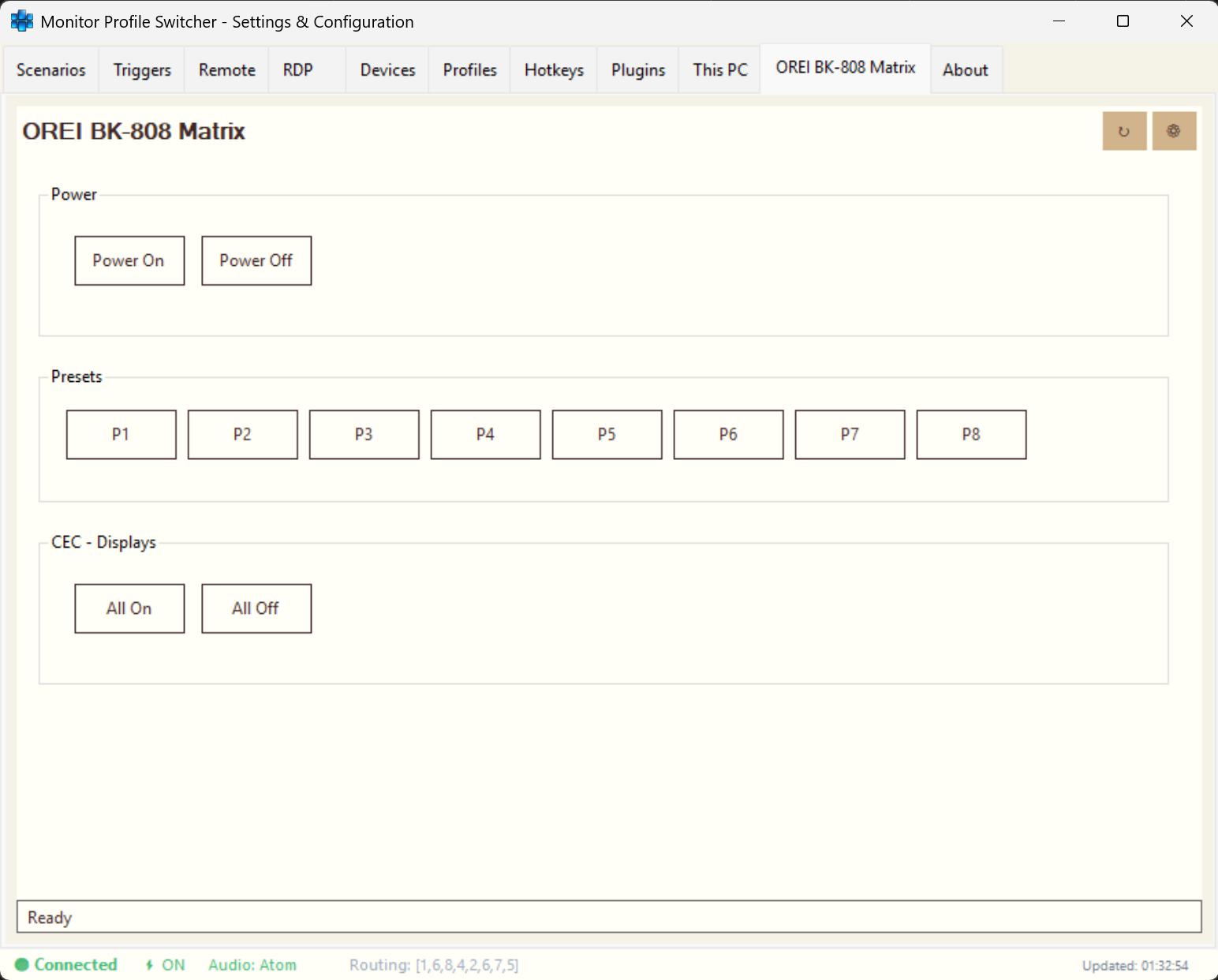

TMRemote v2.0.25.1116 - Main Control Interface

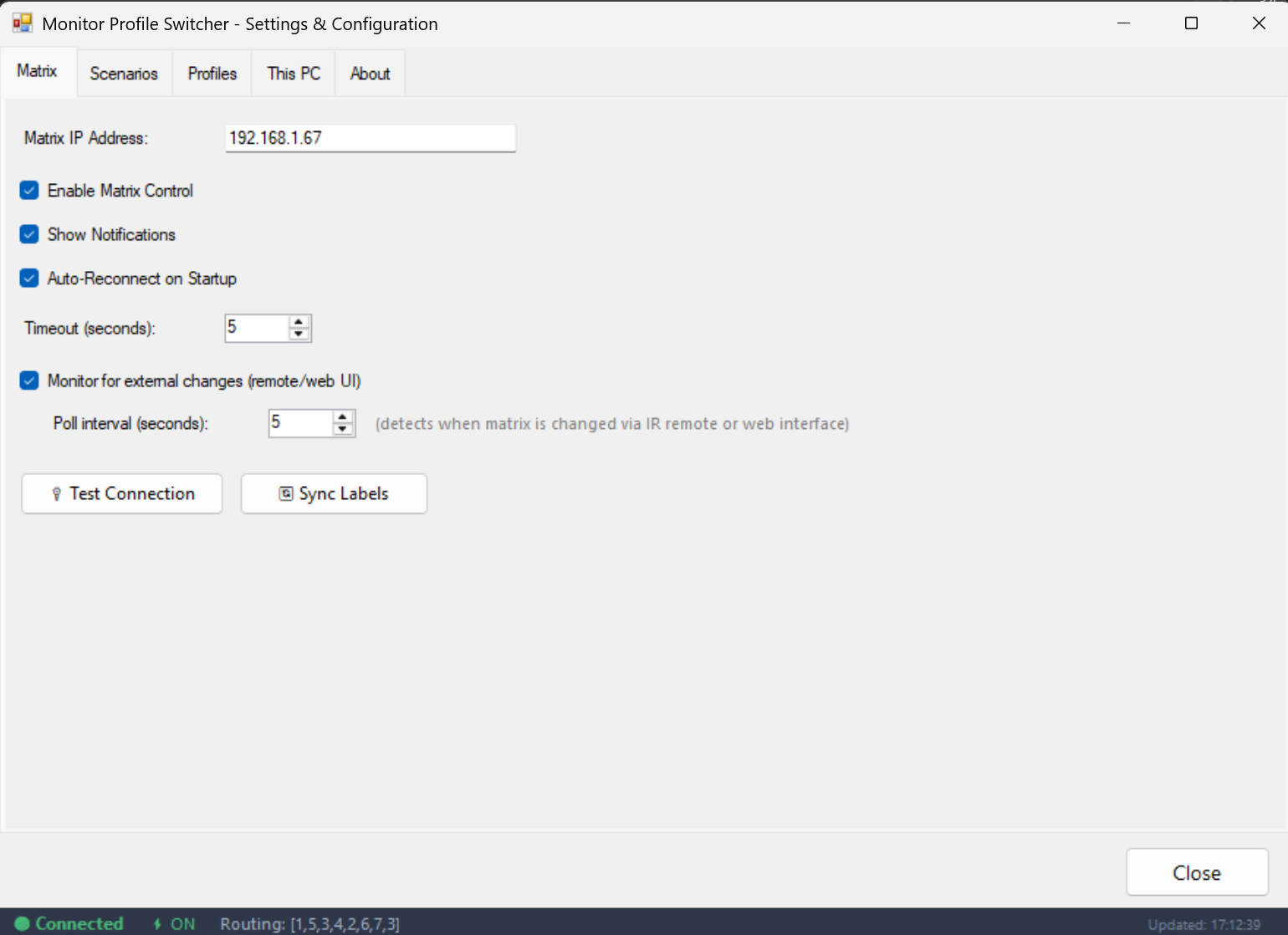

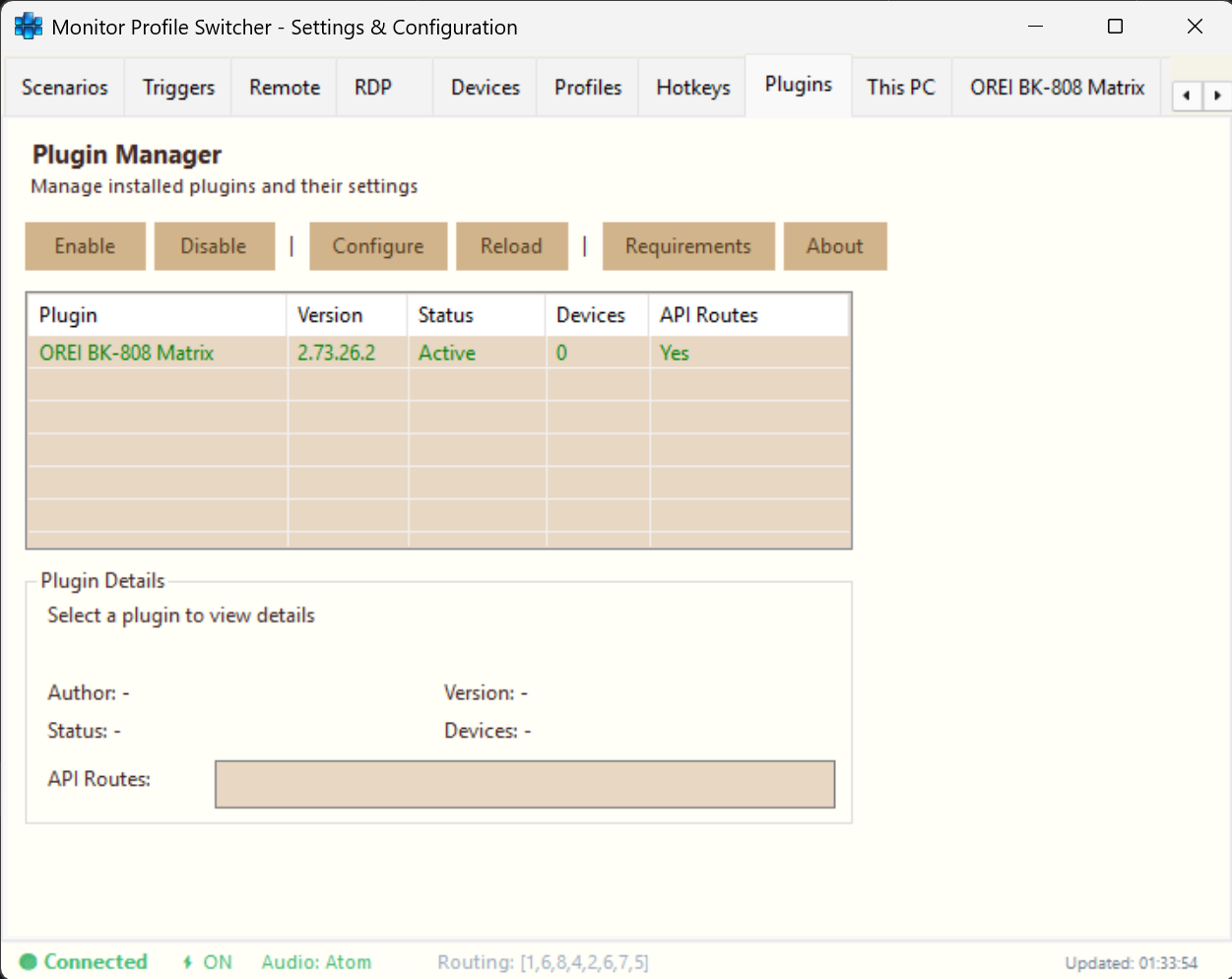

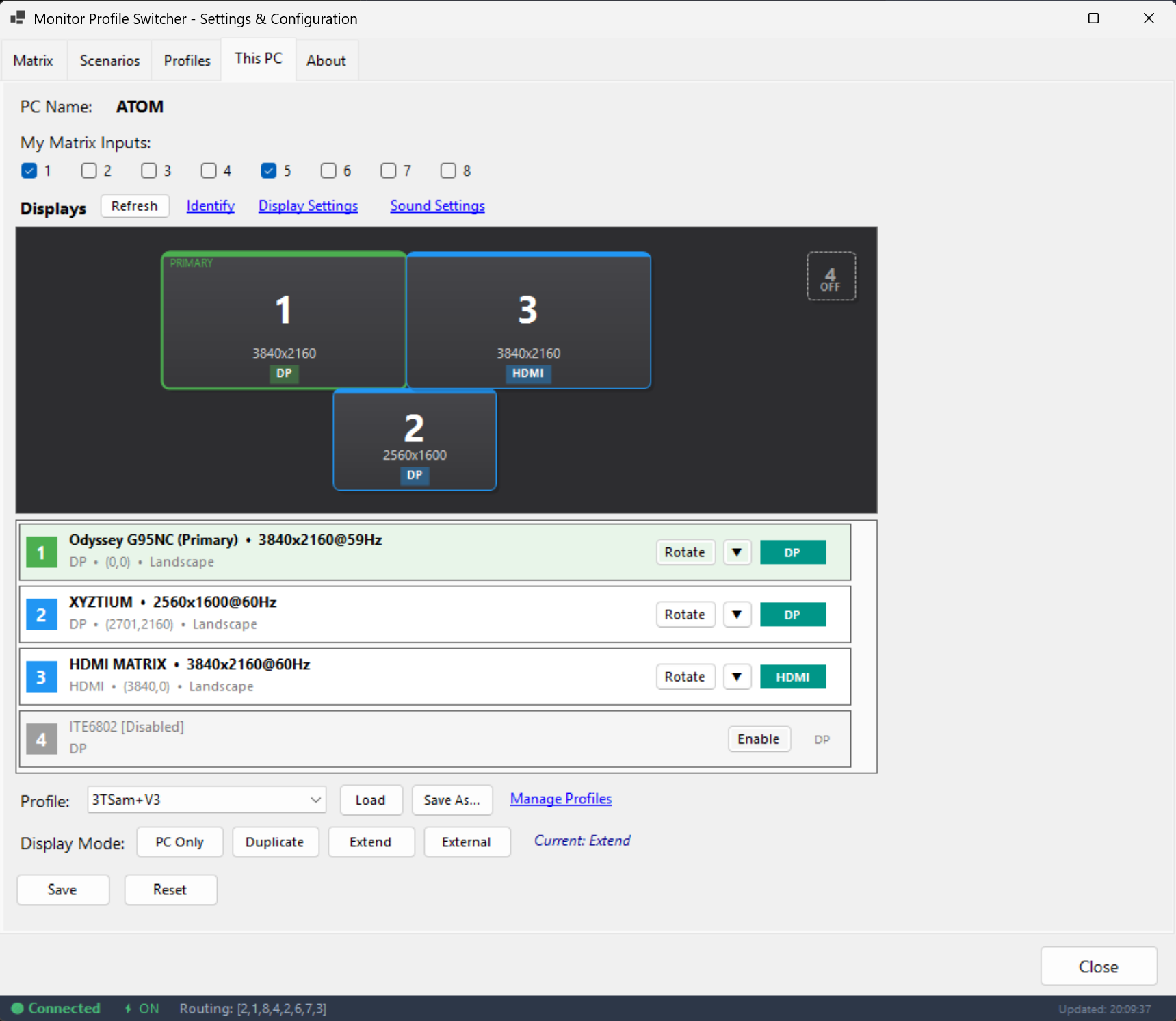

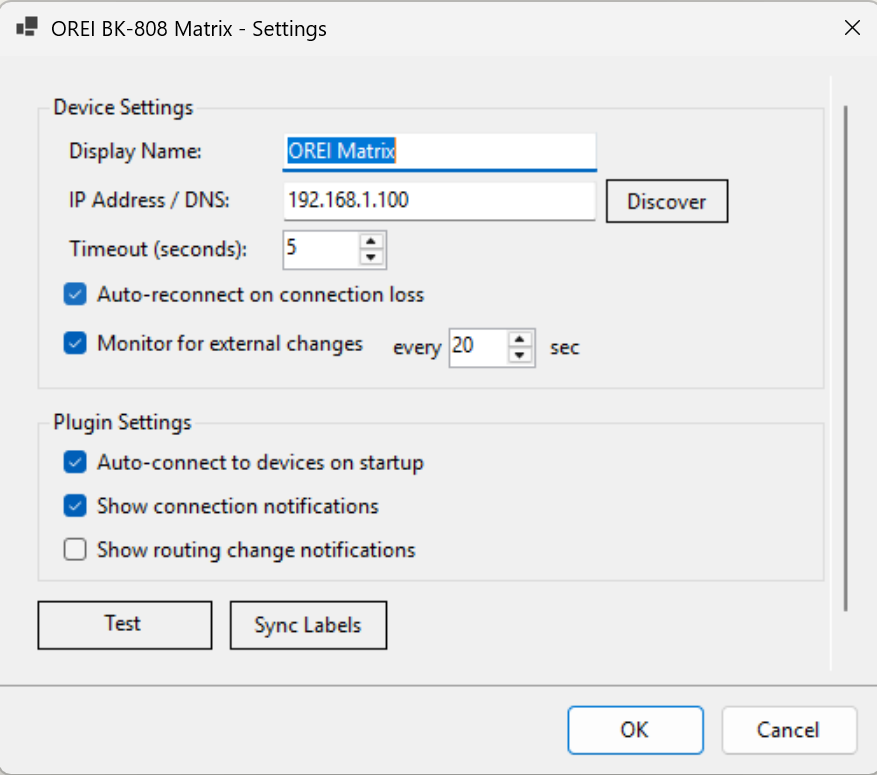

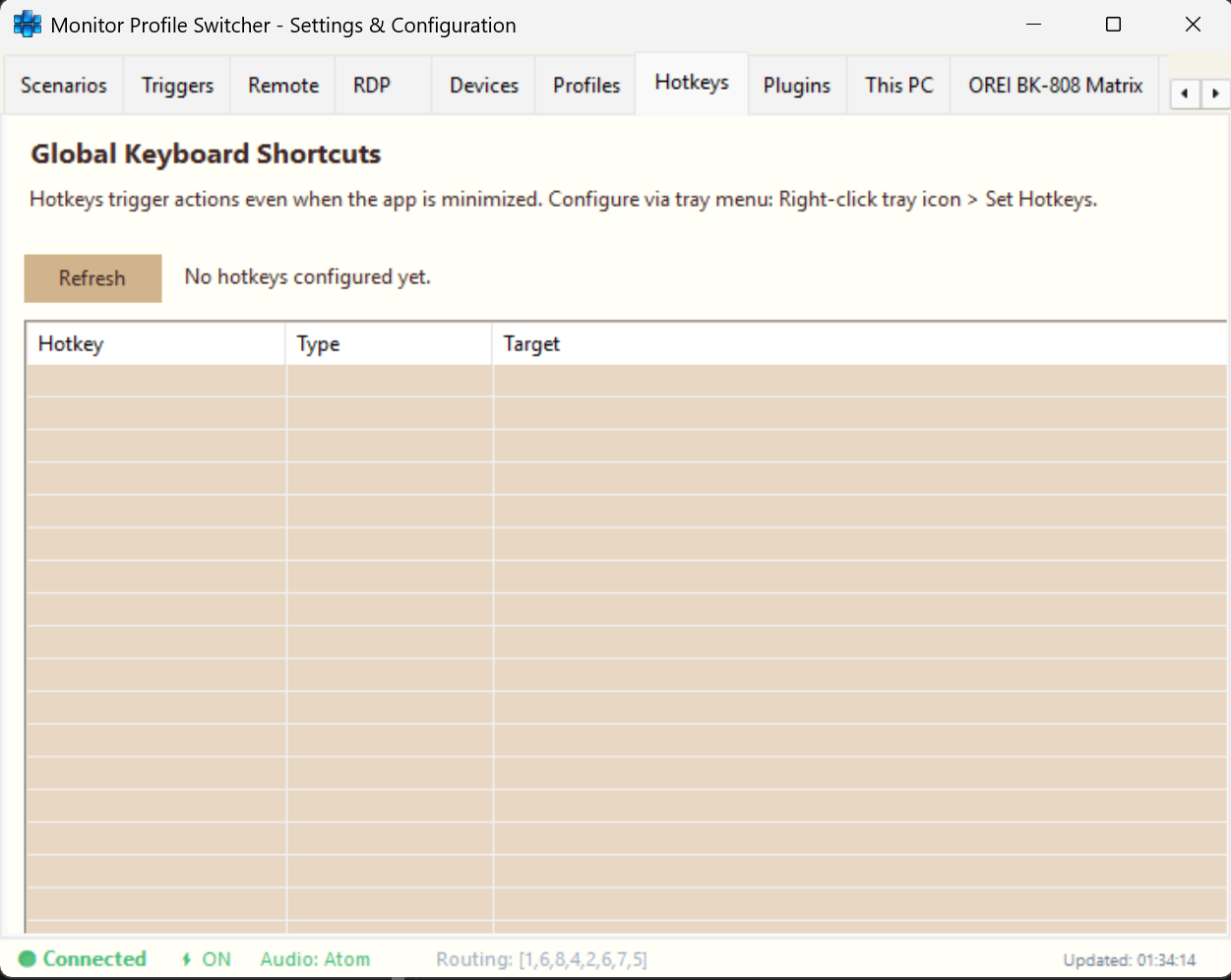

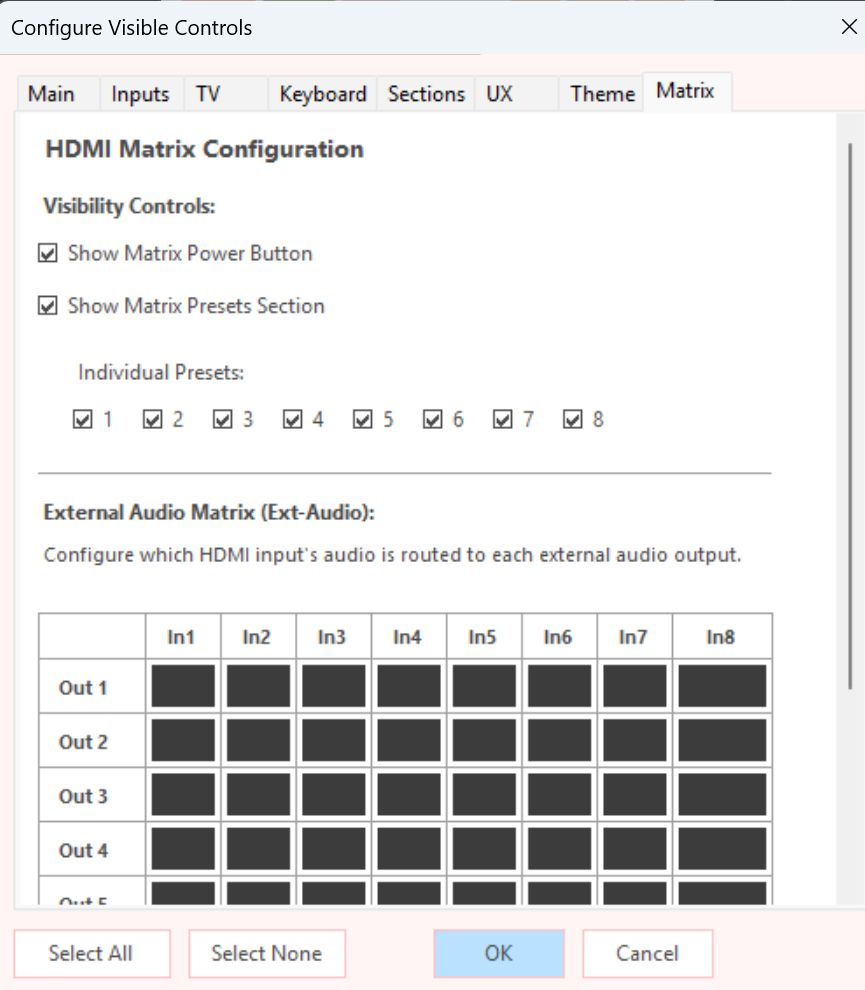

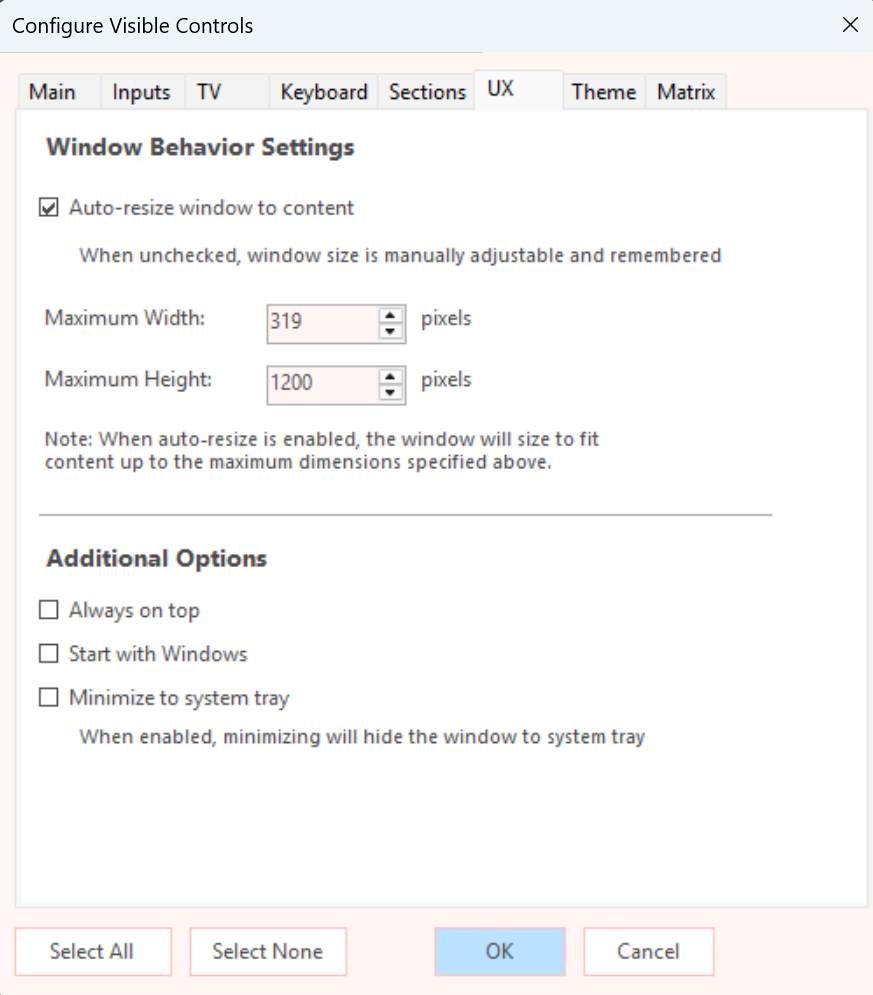

⚙️ Settings & Configuration
Click any screenshot to enlarge
🚀 Get Started with TMRemote
Download TMRemote and take control of your HDMI matrix and display systems
🔥 Download TMRemote v2.0 (v2.0.25.1116)📋 Technical Specifications

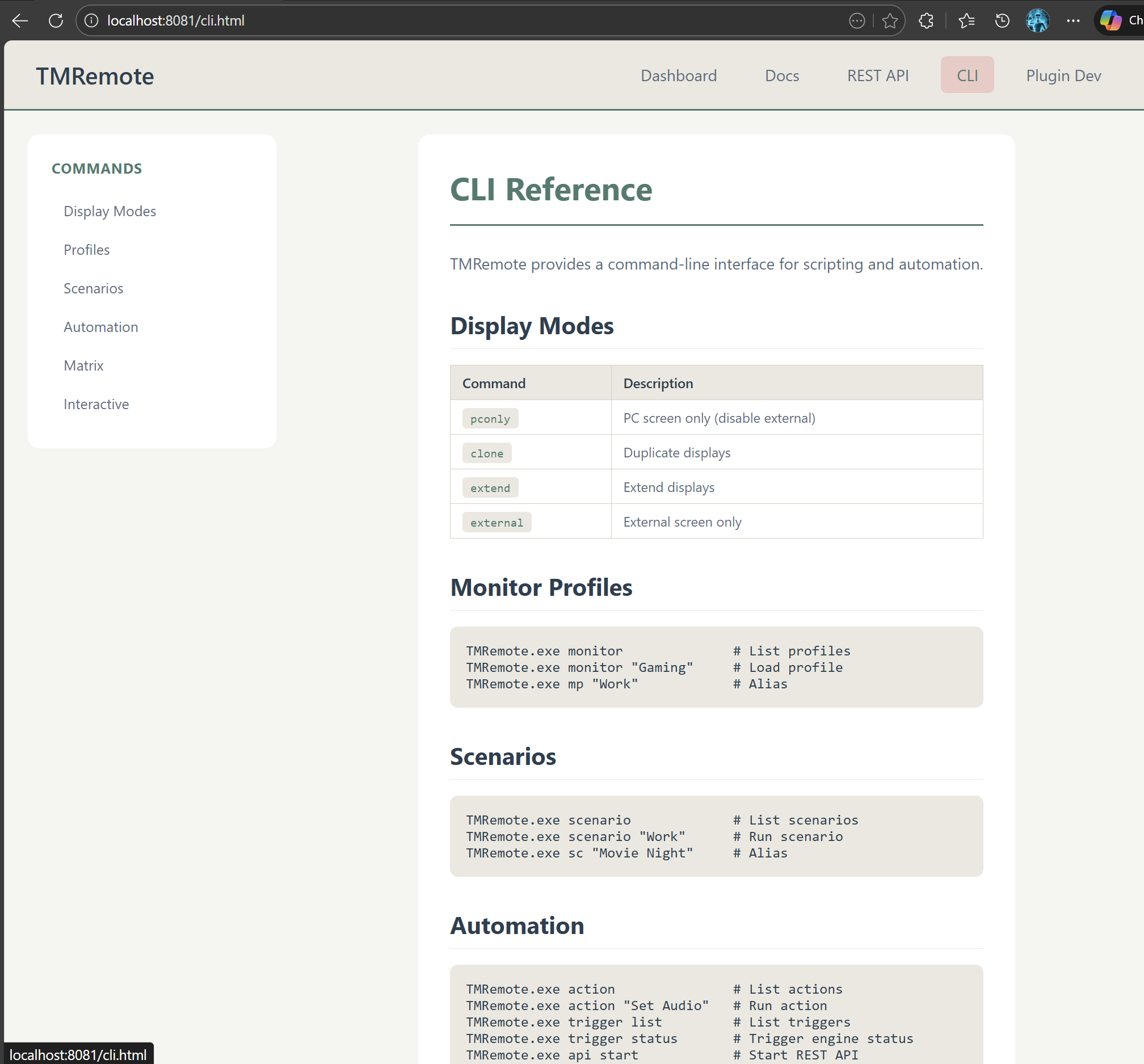

💻 Command-Line Automation
TMRemote provides extensive command-line support for both matrix and display control:
Matrix Control Commands
Display Control Commands
Advanced Automation Script
🎯 Professional Use Cases
📊 Corporate Boardrooms
Route presentations to multiple displays, switch between video conferencing systems, manage audio zones, and save configurations for different meeting types.
🏫 Educational Facilities
Control classroom AV systems, route document cameras and computers to projectors, manage interactive whiteboards, and schedule automatic configurations.
🎮 Gaming & Esports
Switch between multiple gaming consoles and PCs, support 4K@120Hz and VRR, manage streaming setups, and create tournament configurations.
📺 Broadcast & Production
Route video feeds to monitors and recorders, manage preview and program outputs, control confidence monitors, and integrate with production systems.
🏪 Retail & Hospitality
Manage digital signage networks, schedule content routing, control menu boards and displays, and automate daily operations.
🏥 Medical & Control Rooms
Route critical imaging systems, manage multi-monitor workstations, switch between multiple sources, and ensure reliable 24/7 operation.

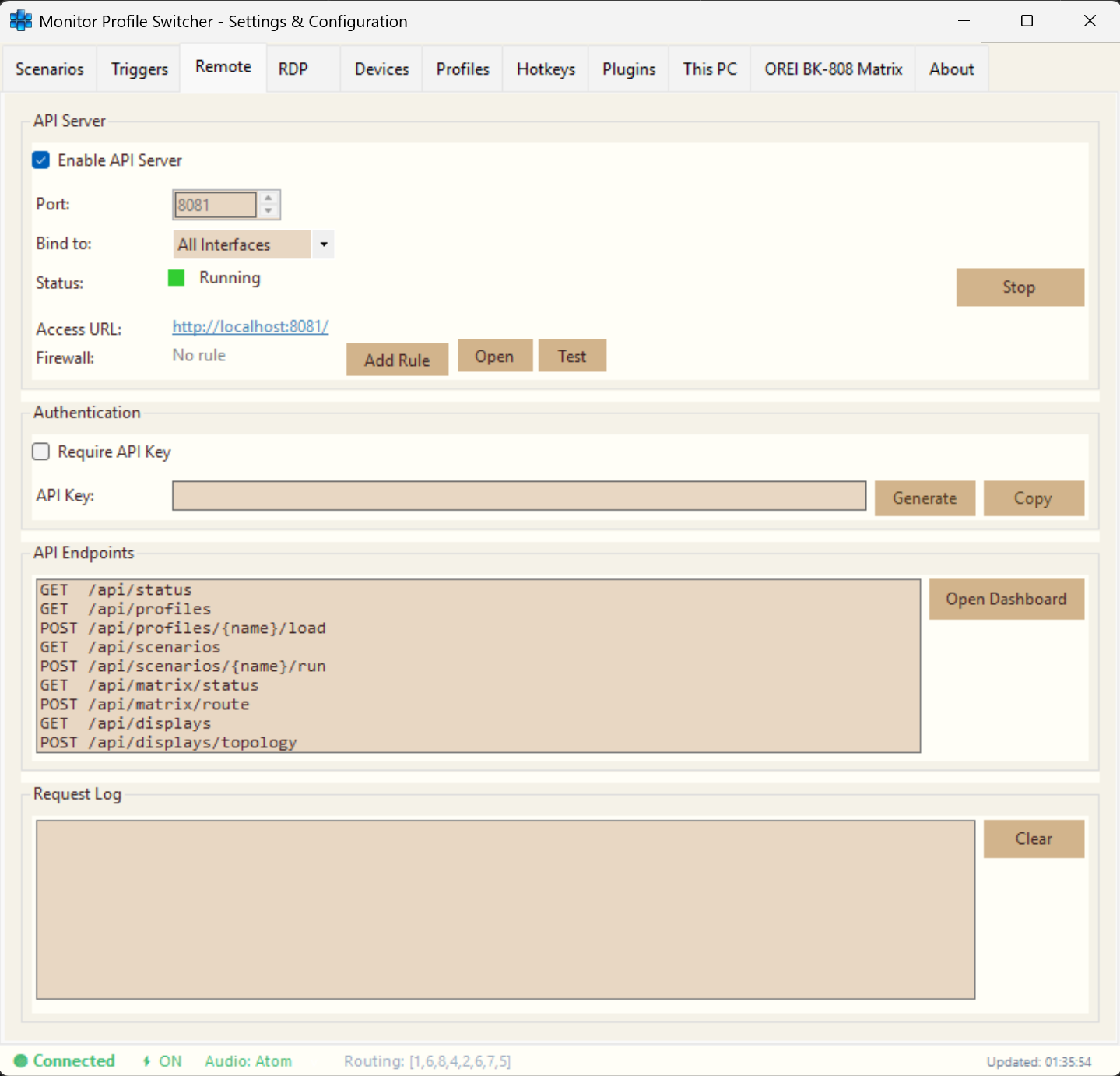

📡 Protocol Support
TMRemote provides comprehensive protocol support for maximum compatibility:
- HTTP JSON API: Direct network control for OREI BK-808 matrix with full routing, preset, and EDID management
- WebSocket Gateway: TCP-to-RS232 bridge for ToteVision display control
- Status Monitoring: Real-time device status queries and feedback
- Batch Operations: Queue multiple commands for complex routing scenarios
- Error Handling: Robust error recovery and retry mechanisms
🔧 API Integration Examples
HTTP JSON API - Matrix Control

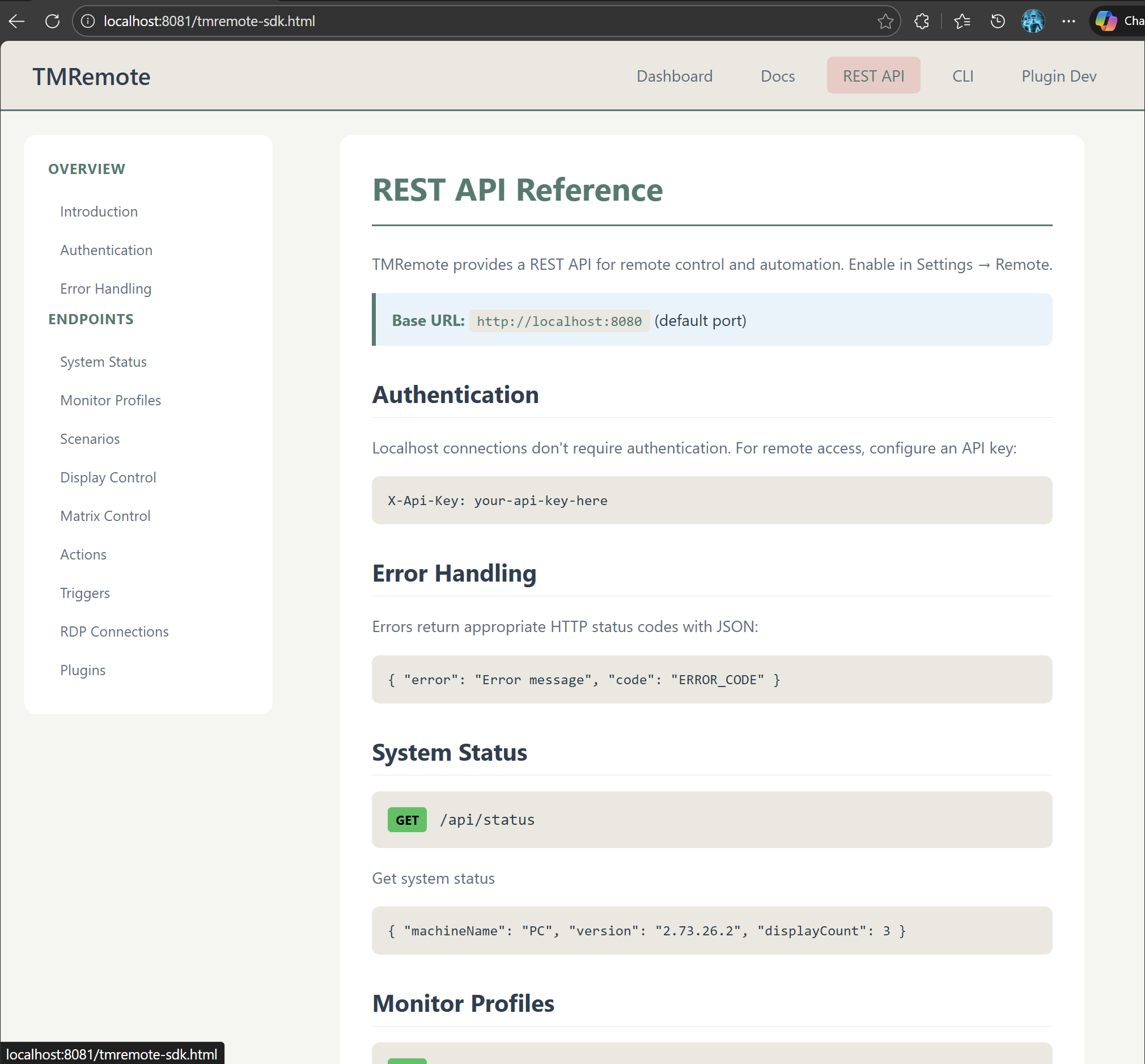

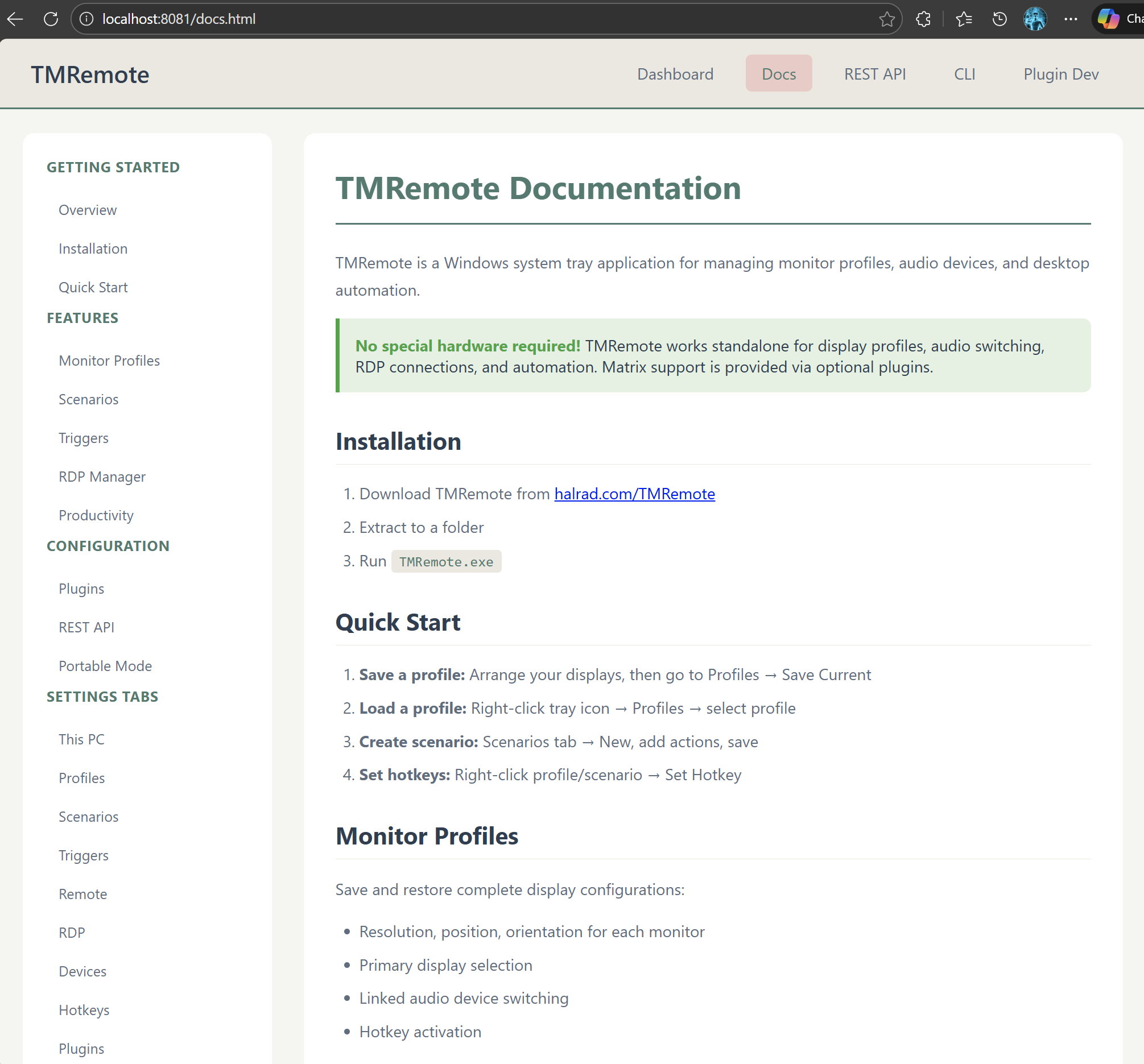

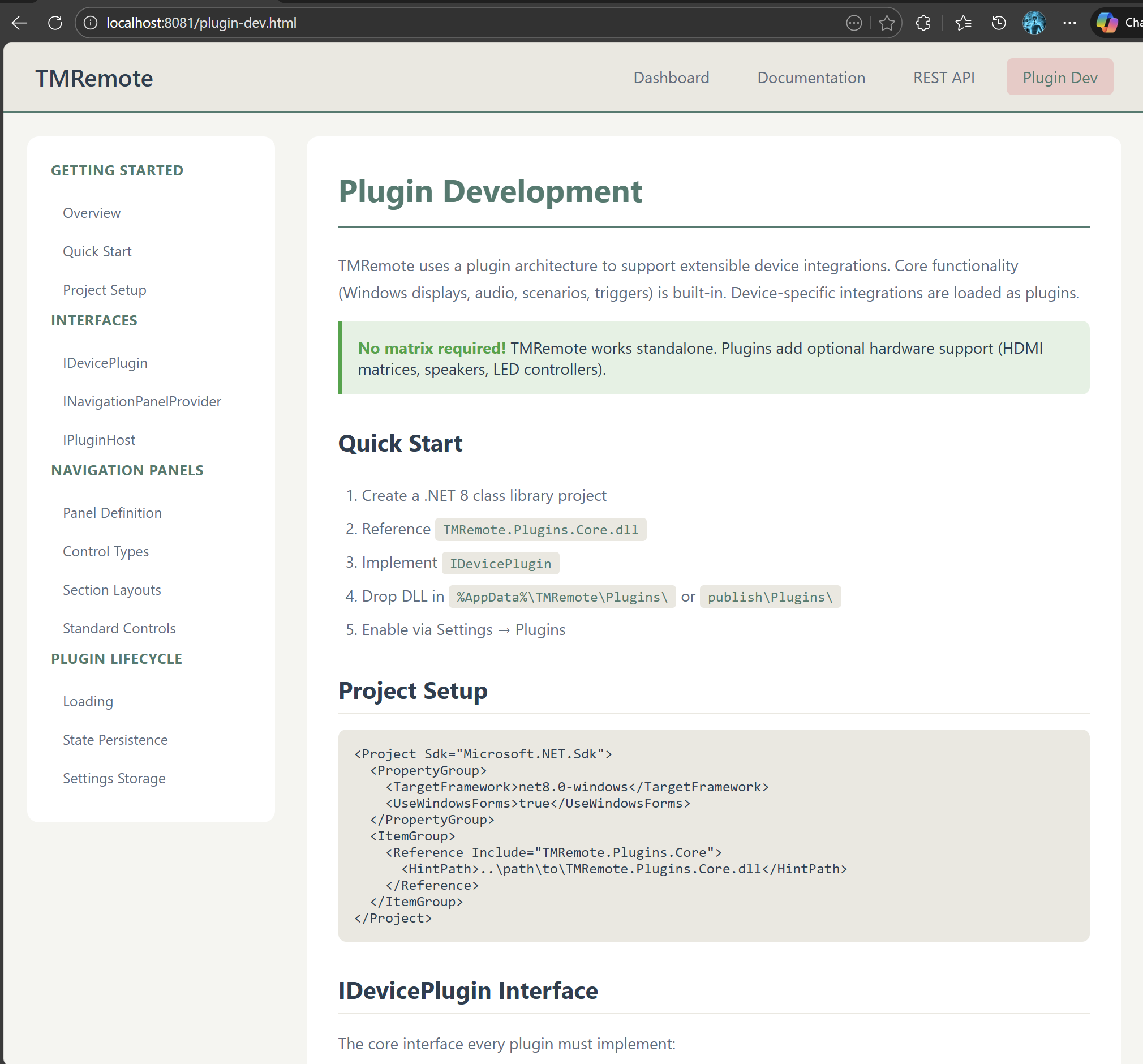

📚 Documentation
Documentation and resources:
